PA4308.822NLT
ActivePulse Electronics
FIXED IND 8.2UH 4.8A 97 MOHM SMD
PA4308.822NLT
ActivePulse Electronics
FIXED IND 8.2UH 4.8A 97 MOHM SMD
Description
General part information
PA4308.822NLT

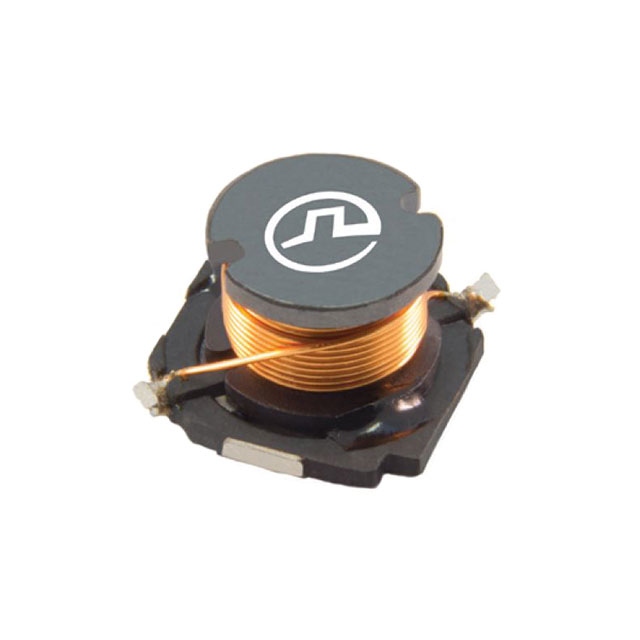

8.2 µH Unshielded Wirewound Inductor 4.8 A 97mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4308.822NLT |
|---|---|
| Current Rating | 4.8 A |
| DC Resistance (DCR) (Max) | 97 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 30 % |
| Type | Wirewound |
