3240710

Active

Phoenix Contact

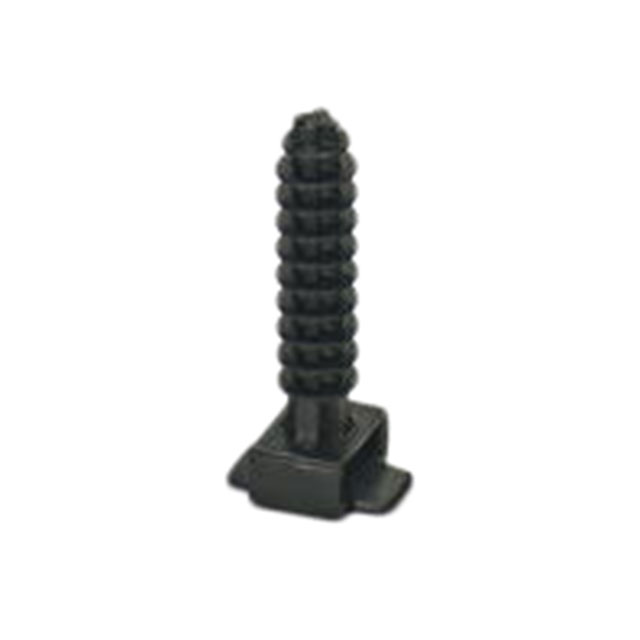

CABLE TIE HLDR SGL PUSH MNT BLK

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE TIE HLDR SGL PUSH MNT BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240710	WT-BASE Series

Color	Black	Black
For Use With/Related Products	-	Cable Ties
For Use With/Related Products [Max]	9.5 mm	6 - 9.5 mm
For Use With/Related Products [Max]	0.374 in	0.236 - 0.374 in
Material	Nylon	ABS, Halogen Free, Nylon
Mounting Type	Push In - Ribbed Shaft	Adhesive, Screw, Push In - Ribbed Shaft
Size / Dimension [x]	0.79 in	0.79 - 1.06 "
Size / Dimension [x]	20 mm	20 - 27 mm
Size / Dimension [y]	0.51 in	0.51 - 1.06 in
Size / Dimension [y]	13 mm	13 - 27 mm
Size / Dimension [z]	43 mm	6.5 - 43 mm
Size / Dimension [z]	1.69 in	0.26 - 1.69 "
Type	Single Opening	Quad Opening, Single Opening

CABLE TIE HLDR QUAD ADH BLACK

Part	Color	Type	Mounting Type	Material	For Use With/Related Products [Max]	For Use With/Related Products [Max]	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Phoenix Contact 3240709	Black	Quad Opening	Adhesive, Screw	ABS, Halogen Free	6 mm	0.236 in	Cable Ties	6.5 mm	0.26 "	1.06 "	27 mm	1.06 in	27 mm
Phoenix Contact 3240710	Black	Single Opening	Push In - Ribbed Shaft	Nylon	9.5 mm	0.374 in		43 mm	1.69 in	0.79 in	13 mm	0.51 in	20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Opening Cable Tie Holder Black Push In - Ribbed Shaft
