68-505-110

Active

Aries Electronics

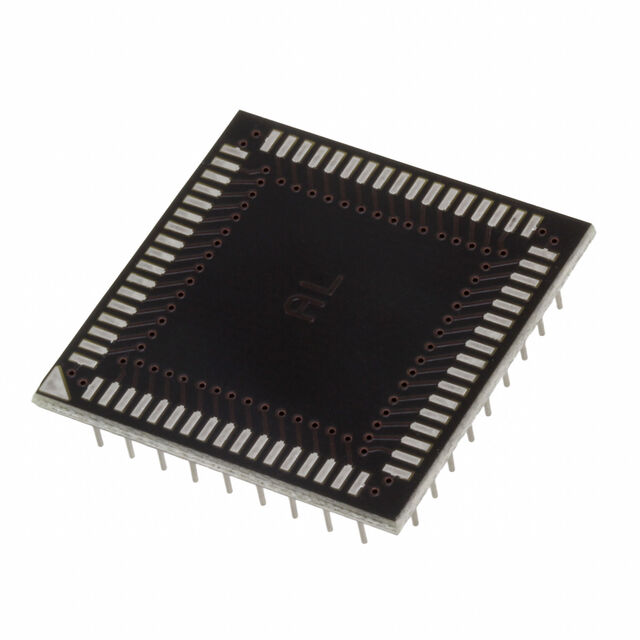

SOCKET ADAPTER PLCC TO 68PGA

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER PLCC TO 68PGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	68-505-110	68-505 Series

Board Material	-	FR4 Epoxy Glass
Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Contact Finish - Post	-	Tin-Lead
Contact Finish Thickness - Post	-	200 µin
Contact Finish Thickness - Post	-	5.08 µm
Contact Material - Post	-	Brass
Convert From (Adapter End)	-	PLCC
Convert To (Adapter End)	-	PGA
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Mounting Type	-	Through Hole
Number of Pins	-	68 pins
Number of Positions	68	68
Pitch - Mating	-	0.05 in
Pitch - Mating	-	1.27 mm
Pitch - Post	-	1.27 mm
Pitch - Post	-	0.05 in
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Proto Board Type	SMD to PGA	SMD to PGA
Size / Dimension [x]	1.1 "	1.1 "
Size / Dimension [x]	27.94 mm	27.94 mm
Size / Dimension [y]	1.1 in	1.1 in
Size / Dimension [y]	27.94 mm	27.94 mm
Termination	-	Solder
Termination Post Length	-	0.15 in
Termination Post Length	-	3.81 mm

SOCKET ADAPTER PLCC TO 68PGA

Part	Material	Pitch [x]	Pitch [x]	Number of Positions	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Board Thickness	Board Thickness	Board Thickness	Proto Board Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Mounting Type	Board Material	Number of Pins	Convert From (Adapter End)	Convert To (Adapter End)
Aries Electronics 68-505-110	FR4 Epoxy Glass	0.05 in	1.27 mm	68	1.1 "	1.1 in	27.94 mm	27.94 mm	0.062 in	0.0625 in	1.57 mm	SMD to PGA
Aries Electronics 68-505-110-RC-P													Tin-Lead	0.05 in	1.27 mm	Brass	200 µin	5.08 µm	Solder	1.27 mm	0.05 in	0.15 in	3.81 mm	Through Hole	FR4 Epoxy Glass	68 pins	PLCC	PGA
Aries Electronics 68-505-110-P													Tin-Lead	0.05 in	1.27 mm	Brass	200 µin	5.08 µm	Solder	1.27 mm	0.05 in	0.15 in	3.81 mm	Through Hole	FR4 Epoxy Glass	68 pins	PLCC	PGA
