1060455-1
ActiveTE Connectivity AMP Connectors

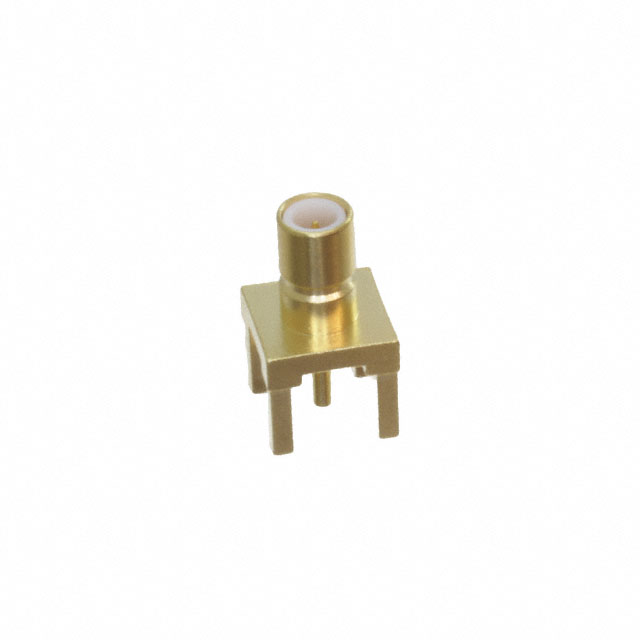

CONN SMB RCPT STR 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1060455-1
ActiveTE Connectivity AMP Connectors
CONN SMB RCPT STR 50 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1060455-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.40 | |
| 10 | $ 7.32 | |||
| 100 | $ 6.51 | |||
| 1000 | $ 5.43 | |||
1060455 Series
CONN SMB RCPT STR 50 OHM PCB
| Part | Body Material | Frequency - Max [Max] | Fastening Type | Number of Ports | Shield Termination | Center Contact Plating | Center Contact Material | Housing Color | Voltage Rating | Connector Type | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Mounting Type | Insertion Loss | Impedance | Dielectric Material | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1060455-1 | Brass | 4 GHz | Snap-On | 1 | Solder | Gold | Brass | Gold | 335 V | Male Pin, Receptacle | Gold | -65 ░C | 165 °C | 500 | Through Hole | 0.3 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | SMB | Solder |
Description
General part information
1060455 Series
SMB Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
