Technical Specifications
Parameters and characteristics for this part
| Specification | 9502 0601000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.64 mm |
| Jacket (Insulation) Diameter [diameter] | 0.222 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Chrome |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.57 | |
| 2000 | $ 1.49 | |||
| 3000 | $ 1.44 | |||
| 5000 | $ 1.39 | |||
| 7000 | $ 1.36 | |||
Description
General part information
9502 Series

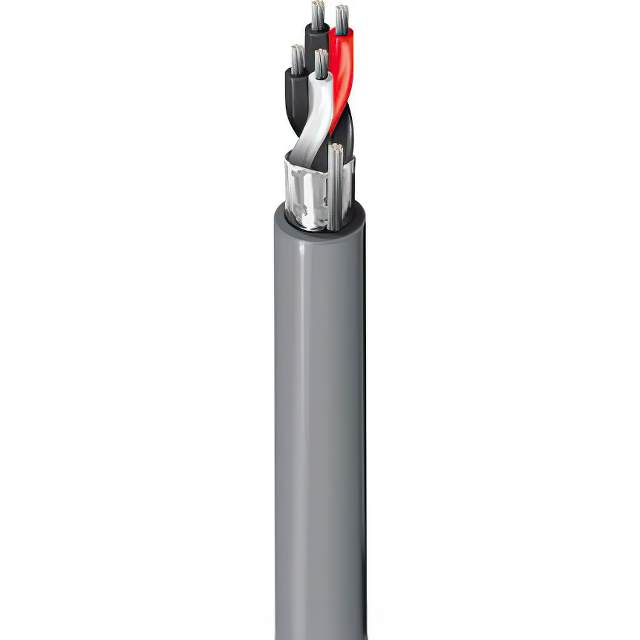

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 1000.0' (304.8m)
