254SA104B50A
ObsoleteCTS Electrocomponents
SWITCH JOYSTICK ANALOG 50V
254SA104B50A
ObsoleteCTS Electrocomponents
SWITCH JOYSTICK ANALOG 50V
Description
General part information
254SA104B50A

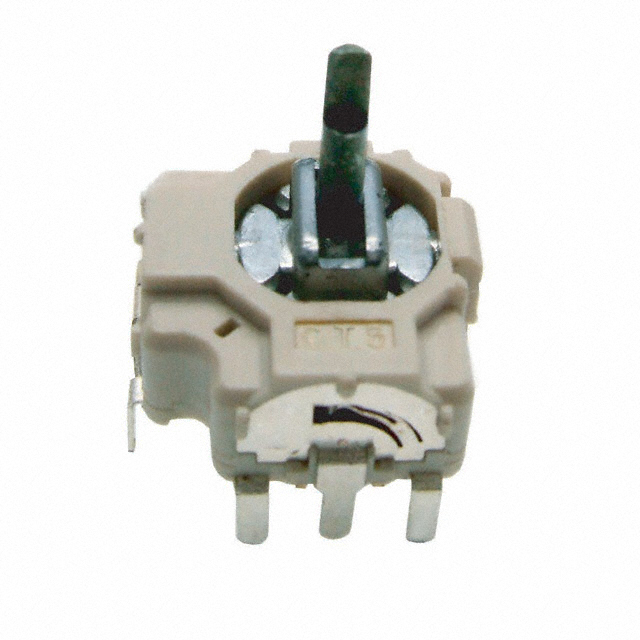

Joystick, 2 - Axis Analog (Resistive) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | 254SA104B50A |
|---|---|
| Actuator Type | Joystick |
| Electrical Life (Cycles) | 1000000 Cycles |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 1.2 gfm |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Analog (Resistive) |
| Resistance | 100 kOhm |
| Switch Function | 360° Directional |
| Termination Style | SMD (SMT) Tab |
| Type | Joystick, 2 - Axis |
| Voltage Rating - AC | 50 VAC |
| Voltage Rating - DC | 5 V |
