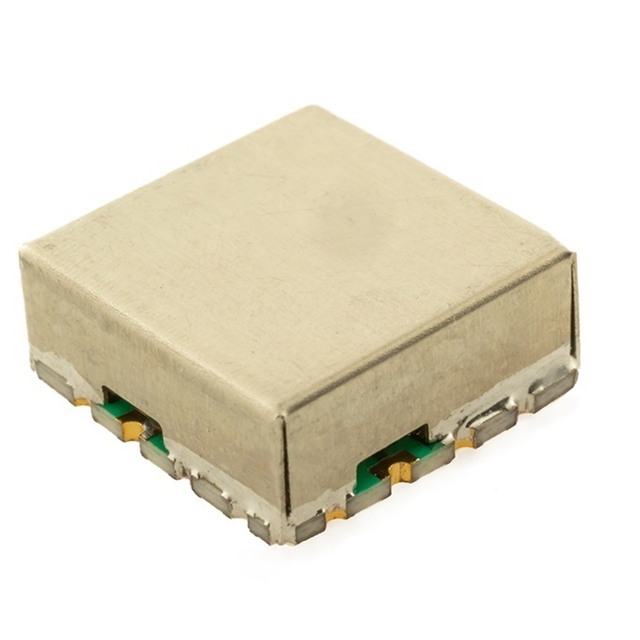

RQRA-0400-0800
ActiveRaltron Electronics
VCO 400MHZ-800MHZ SMD .5X.5"
RQRA-0400-0800
ActiveRaltron Electronics
VCO 400MHZ-800MHZ SMD .5X.5"
Description
General part information
RQRA-0400-0800
600MHz Center Frequency 0 V ~ 12 V Voltage Controlled Oscillator 5 ±5 dBm -5 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | RQRA-0400-0800 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -5 dBc |
| Frequency - Center | 600 MHz |
| Frequency Range (Max) | 800 MHz |
| Frequency Range (Min) | 400 MHz |
| Height | 0.162 in |
| Icc Max | 17 mA |
| Maximum Tuning Voltage (VDC) | 12 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 16-QFN, Variant |
| Phase Noise Typ (dBc/Hz) | -102 dBc/Hz |
| Power (dBm) (Nominal) | 5 dBm |
| Power (dBm) Tolerance | 5 dBm |
| Pushing (MHz/V) | 5 MHz/V |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Voltage - Supply | 5 VDC |
