150 AHV D BS
ObsoleteTE Connectivity Corcom Filters

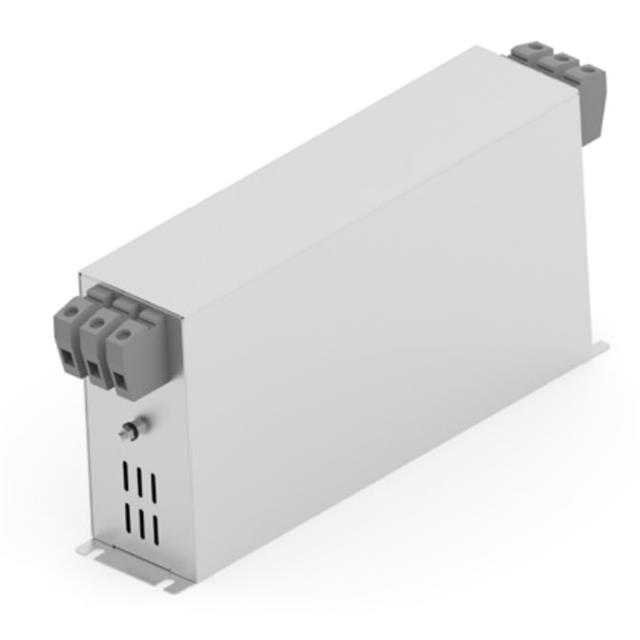

LINE FILTER 150A CHASSIS MOUNT
150 AHV D BS
ObsoleteTE Connectivity Corcom Filters
LINE FILTER 150A CHASSIS MOUNT
Description
General part information
150 AHV D BS
Three Phase (Delta) EMC/EMI Line Filter 150 A 50Hz ~ 60Hz Two Stage Terminal Block, Threaded Post (M10)
Technical Specifications
Parameters and characteristics for this part
| Specification | 150 AHV D BS |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus |
| Configuration | Two Stage |
| Current | 150 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block, Threaded Post (M10) |
| Voltage - Rated AC (Phase to Ground/Neutral) | 750 V |
| Voltage - Rated AC (Phase to Phase) | 760 V |
