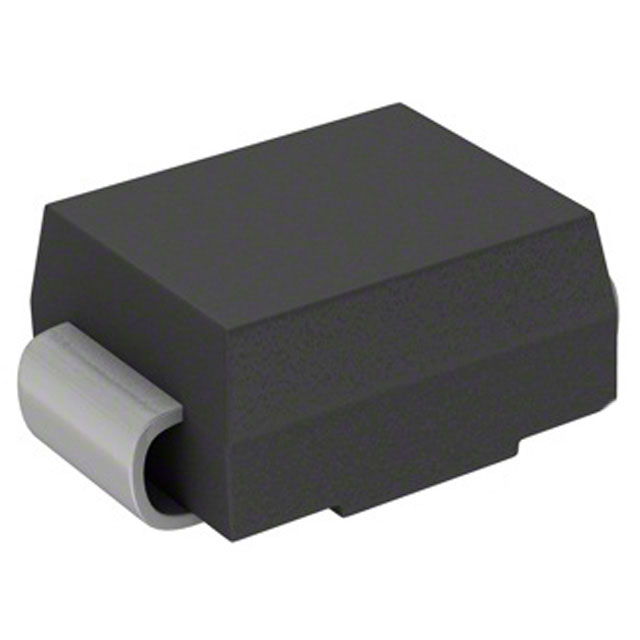

P1100SB
ActiveYAGEO
TSS,DO-214AA,90V,150MA, CO 55PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P1100SB
ActiveYAGEO
TSS,DO-214AA,90V,150MA, CO 55PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P1100SB |
|---|---|
| Capacitance | 55 pF |
| Current - Hold (Ih) | 150 mA |
| Current - Peak Pulse (10/1000µs) | 80 A |
| Current - Peak Pulse (8/20µs) | 250 A |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Package / Case | SMB, DO-214AA |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Voltage - Breakover | 130 V |
| Voltage - Off State | 90 V |
| Voltage - On State | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.23 | |
| 6000 | $ 0.22 | |||
| 9000 | $ 0.20 | |||
| 30000 | $ 0.20 | |||
Description
General part information
P1100 Series
90V Off-State 250 A Ipp TVS Thyristor DO-214AA, SMB
