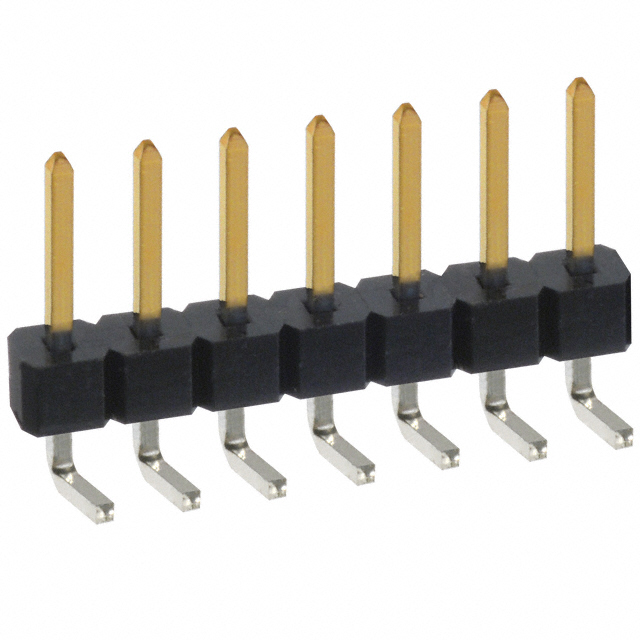

PBC07SBAN

Active

Sullins Connector Solutions

CONN HEADER R/A 7POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC07SBAN

Active

Sullins Connector Solutions

CONN HEADER R/A 7POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC07SBAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC07 Series

Part	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Insulation Height	Insulation Height	Connector Type	Style	Insulation Color	Contact Finish - Post	Contact Type	Contact Shape	Shrouding	Contact Material	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PBC07SFAN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm	0.538 "	13.67 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A	0.12 in	3.05 mm
Sullins Connector Solutions PBC07DFDN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm	0.838 in	21.29 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	14	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	2	2.54 µm	100 µin	3 A	0.42 in	10.67 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC07DABN	All	Push-Pull	UL94 V-0	Gold	0.23 in		0.56 in	14.22 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	14	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	2	2.54 µm	100 µin	3 A			2.54 mm	0.1 in	5.84 mm	0.23 in	5.84 mm
Sullins Connector Solutions PBC07SFDN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm	0.838 in	21.29 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A	0.42 in	10.67 mm
Sullins Connector Solutions PBC07DAFN	All	Push-Pull	UL94 V-0	Gold	0.23 in		0.95 in	24.13 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	14	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	2	2.54 µm	100 µin	3 A			2.54 mm	0.1 in	5.84 mm	0.62 in	15.75 mm
Sullins Connector Solutions PBC07DFAN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm	0.538 "	13.67 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	14	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	2	2.54 µm	100 µin	3 A	0.12 in	3.05 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC07SGBN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm			Through Hole Right Angle	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.14 in	3.56 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A	0.2 in	5.08 mm
Sullins Connector Solutions PBC07SBEN	All	Push-Pull	UL94 V-0	Gold	0.23 in				Through Hole Right Angle	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.14 in	3.56 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A					5.84 mm	0.5 in	12.7 mm
Sullins Connector Solutions PBC07SFEN	All	Push-Pull	UL94 V-0	Gold	0.318 "	8.08 mm	0.938 in	23.83 mm	Through Hole	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A						0.52 "	13.21 mm
Sullins Connector Solutions PBC07SBAN	All	Push-Pull	UL94 V-0	Gold	0.23 in				Through Hole Right Angle	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	7	0.14 in	3.56 mm	Breakaway Header	Board to Board Cable	Black	Tin	Male Pin	Square	Unshrouded	Phosphor Bronze	1	2.54 µm	100 µin	3 A					5.84 mm	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.97
		10	$ 0.74
		100	$ 0.57
		500	$ 0.48
		1000	$ 0.44
		5000	$ 0.39

Description

General part information

PBC07 Series

Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
