Description

General part information

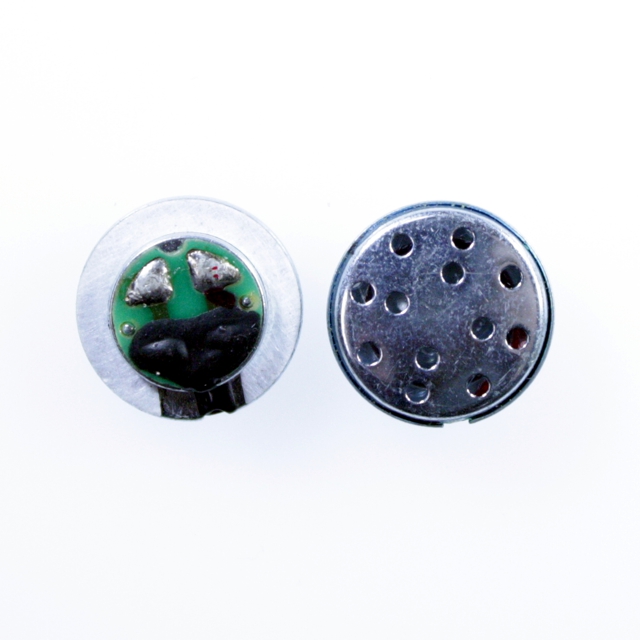

HSR13Z-32

32 Ohms General Purpose Speaker 10 mW Top Round

Technical Specifications

Parameters and characteristics for this part

SpecificationHSR13Z-32
Efficiency - dBA101 dBA
Efficiency - Testing1 mW
Height - Seated (Max)0.205 in
Impedance32 Ohms
Port LocationTop
Power - Max20 mW
Power - Rated10 mW
ShapeRound
Size / Dimension Diameter0.512 in
TechnologyMagnetic
TerminationSolder Pads
TypeGeneral Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HSR13Z-32 | Datasheet
