FMHR0071-200CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMAPLUG 78.7
FMHR0071-200CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-SMAPLUG 78.7
Description
General part information
FMHR0071-200CM

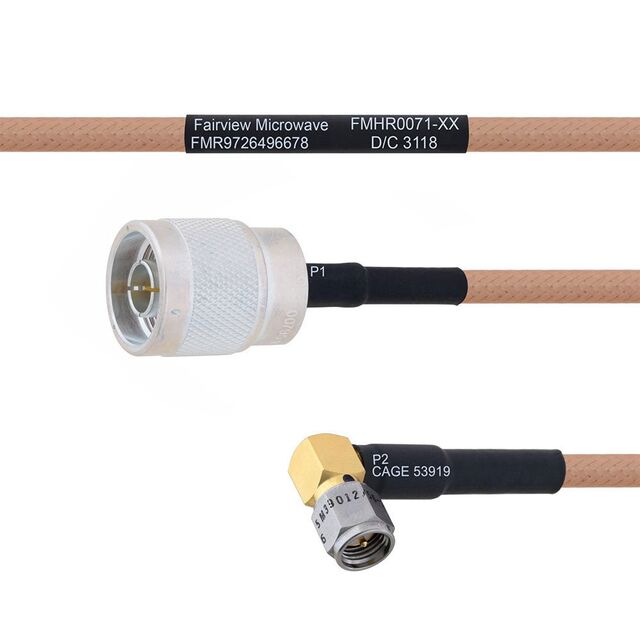

Cable Assembly Coaxial SMA to N-Type RG-400 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0071-200CM |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
