SPHWHTL3D305E6UPH3

Obsolete

Samsung Semiconductor, Inc.

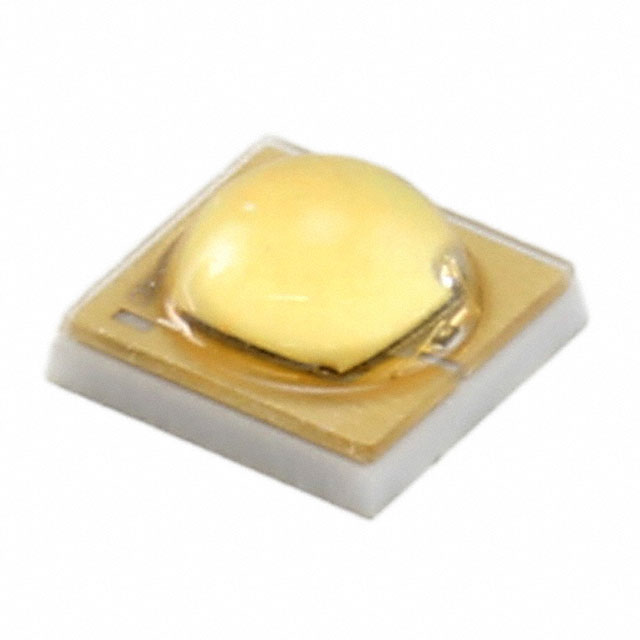

LED LH351A WARM WHT 3500K 3535

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWHTL3D305E6UPH3

Obsolete

Samsung Semiconductor, Inc.

LED LH351A WARM WHT 3500K 3535

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SPHWHTL3 Series

LED Lighting LH351A White, Warm 3500K 2.95V 350mA 125° 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWHTL3D305E6UPH3	SPHWHTL3 Series

	-	-
CCT (K)	3500 K	2700 - 7000 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	80	68 - 90
Current - Max [Max]	1.5 A	1 - 3 A
Current - Test	350 mA	1.05 - 350 A
Flux @ 25°C, Current - Test	125 lm	110 - 150 lm
Flux @ 25°C, Current - Test	-	80 - 140 lm
Flux @ 25°C, Current - Test	-	140 - 160 lm
Flux @ 85°C, Current - Test	-	100 - 510 lm
Flux @ 85°C, Current - Test	-	90 - 480 lm
Flux @ 85°C, Current - Test	-	110 - 520 lm
Flux @ 85°C, Current - Test	-	330lm ~ 390lm
Flux @ 85C, Current - Test	-	350 lm
Flux @ 85C, Current - Test	-	290 lm
Height - Seated (Max)	-	2.46 mm
Height - Seated (Max)	-	0.097 "
Height - Seated (Max)	-	2.06 mm
Height - Seated (Max) [Max] [z]	2.02 mm	2.02 mm
Height - Seated (Max) [Max] [z]	0.08 in	0.08 - 0.081 "
Lumens/Watt @ Current - Test	121 lm/W	98 - 180 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 in
Supplier Device Package	3535	3535, 1414
Thermal Resistance of Package	-	2.2 °C/W
Thermal Resistance of Package	-	3 - 7 °C/W
Thermal Resistance of Package	-	25 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Viewing Angle	125 °	115 - 128 °
Voltage - Forward (Vf) (Typ)	2.95 V	2.85 - 3 V

SPHWHTL3 Series

LED LH351D COOL WHITE 5000K 3535

...

Part	Package / Case	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Flux @ 85°C, Current - Test	Color	CRI (Color Rendering Index)	Thermal Resistance of Package	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4RTU6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	450 lm	Cool, White	80	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5000 K	143 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3D50GE4TMJF	3535 Metric	1414		2.9 V	128 °	2 A	240 lm	Neutral, White	90		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	118 lm/W	2.46 mm	0.097 "	3535	3 °C/W	210 lm	270 lm
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4QTU6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	450 lm	Cool, White	80	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5700 K	143 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3D50CE4VMNF	3535 Metric	1414		2.9 V	128 °	2 A		Warm, White	70		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	3000 K	148 lm/W	2.46 mm	0.097 "	3535	3 °C/W	270 lm	330 lm
Samsung Semiconductor, Inc. SPHWHTL3D50CE4TPPF	3535 Metric	1414		2.9 V	128 °	2 A	320 lm	Neutral, White	70		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	158 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4TPQ6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	370 lm	Neutral, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	117 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4VMN6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	330 lm	Warm, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	3000 K	105 lm/W	2.46 mm	0.097 "	3535		300 lm	360 lm
Samsung Semiconductor, Inc. SPHWHTL3D50EE4WPKF	3535 Metric	1414		2.9 V	128 °	2 A	260 lm	Warm, White	80		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	2700 K	128 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3D50GE4RTKF	3535 Metric	1414		2.9 V	128 °	2 A	260 lm	Cool, White	90		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5000 K	128 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4T0P6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	350 lm	Neutral, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	111 lm/W	2.46 mm	0.097 "	3535
