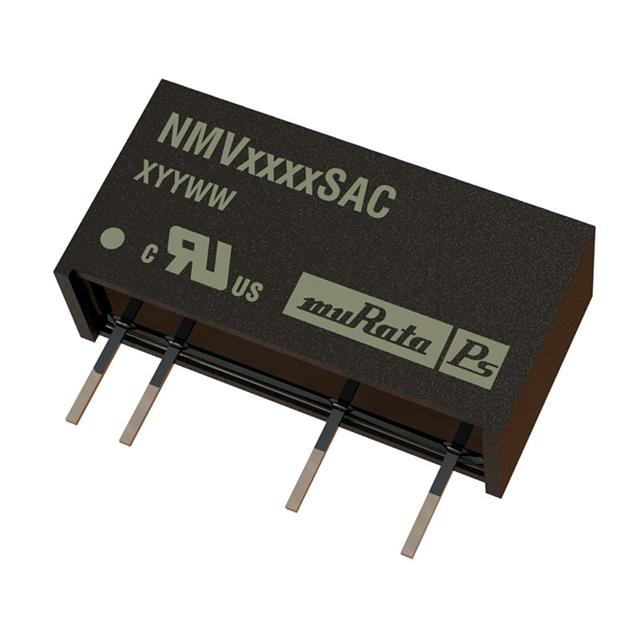

NMV2405SAC
ActiveMurata Power Solutions Inc.
MODULE DC-DC 24VIN 1-OUT 5V 0.2A 1W 4-PIN SIP TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMV2405SAC
ActiveMurata Power Solutions Inc.
MODULE DC-DC 24VIN 1-OUT 5V 0.2A 1W 4-PIN SIP TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMV2405SAC | NMV24 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 42 - 200 mA |
| Current - Output (Max) | - | 42 mA |
| Efficiency | - | 70 - 80 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 - 2 |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 0 °C |
| Package / Case | - | 7-SIP Module, 5 Leads, 7-SIP Module, 4 Leads |
| Size / Dimension | - | 6 mm |
| Size / Dimension | - | 0.39 in |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.24 in |
| Size / Dimension | - | 19.5 mm |
| Size / Dimension | - | 0.77 " |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 26.4 V |
| Voltage - Input (Min) | - | 21.6 V |
| Voltage - Isolation | - | 3000 V |
| Voltage - Output 1 | - | 5 - 12 V |
| Voltage - Output 2 | - | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NMV24 Series
DC DC CONVERTER +/-12V 1W
| Part | Number of Outputs | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Efficiency | Applications | Package / Case | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMV2412SC | 2 | 42 mA | 42 mA | Through Hole | 70 °C | 0 °C | Isolated Module | 3000 V | 21.6 V | 12 V | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 26.4 V | 80 % | ITE (Commercial) | 7-SIP Module, 5 Leads | -12 V |
Murata Power Solutions Inc. NMV2405SAC | |||||||||||||||||||||
Murata Power Solutions Inc. NMV2405SAC | 1 | 200 mA | Through Hole | 70 °C | 0 °C | Isolated Module | 3000 V | 21.6 V | 5 V | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 26.4 V | 70 % | ITE (Commercial) | 7-SIP Module, 4 Leads |
Description
General part information
NMV24 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
