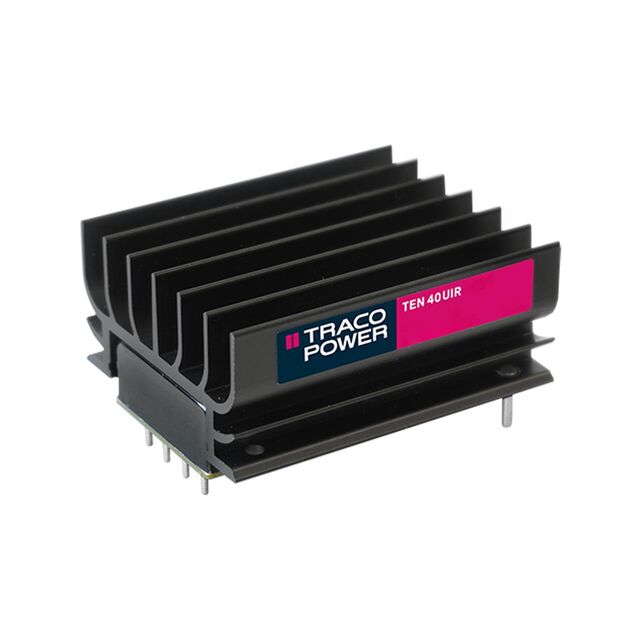

TEN 40-7213UIR
ActiveTraco Power
12:1 INPUT 40W DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEN 40-7213UIR
ActiveTraco Power
12:1 INPUT 40W DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEN 40-7213UIR |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) [Max] | 2.67 A |
| Efficiency | 90 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module, 6 Leads |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 14 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 104.00 | |
Description
General part information
TEN 40-7213UIR
Isolated Module DC DC Converter 1 Output 15V 2.67A 14V - 160V Input
