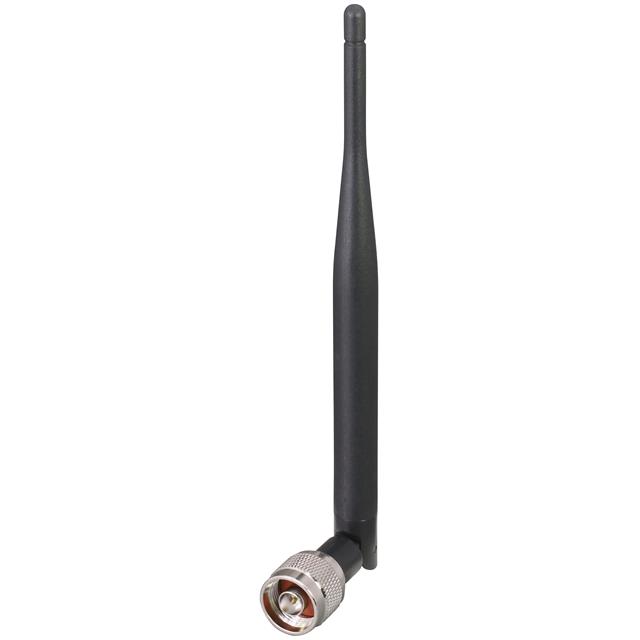

ANT-450-HSW-NP

Active

TE Connectivity Linx

RF ANT 450MHZ LTE WHIP N PLUG

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 450MHZ LTE WHIP N PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Return Loss	Frequency Group [Max]	Frequency Group [Min]	Applications	Height (Max) [Max]	Height (Max) [Max]	VSWR	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Antenna Type	RF Family/Standard	Features	Features	Number of Bands	Frequency (Center/Band)	Gain	Mounting Type	Termination
TE Connectivity Linx ANT-450-PW-QW	17.7 dB	1 GHz	300 MHz	5G Cellular LTE mMTC NB-IoT NR	167 mm	6.57 in	1.3	450 MHz	470 MHz	10 W	Whip Straight	Cellular	Cable	216 mm	1	458 MHz	3.4 dBi	Solder
TE Connectivity Linx ANT-450-CW-QW-SMA	17.7 dB	1 GHz	300 MHz	5G Cellular LTE mMTC NB-IoT NR	167 mm	6.57 in	1.3	450 MHz	470 MHz	10 W	Whip Straight	Cellular			1	458 MHz	3.4 dBi	Connector Mount
TE Connectivity Linx ANT-450-HSW-NP		1 GHz	300 MHz	LTE	205.49 mm	8.09 "	1.2 1.6	410 MHz 450 MHz	427 MHz 467.5 MHz	25 W		Cellular			2	418.5 MHz 458.75 MHz	2.3 dBi 3.1 dBi	Connector Mount	N Type Male
TE Connectivity Linx ANT-450-HSW-TNC		1 GHz	300 MHz	LTE	201.68 mm	7.94 in	1.2 1.6	410 MHz 450 MHz	427 MHz 467.5 MHz	25 W		Cellular			2	418.5 MHz 458.75 MHz	2.3 dBi 3.1 dBi	Connector Mount	TNC Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA LTE Whip, Right Angle N Type Male Connector Mount
