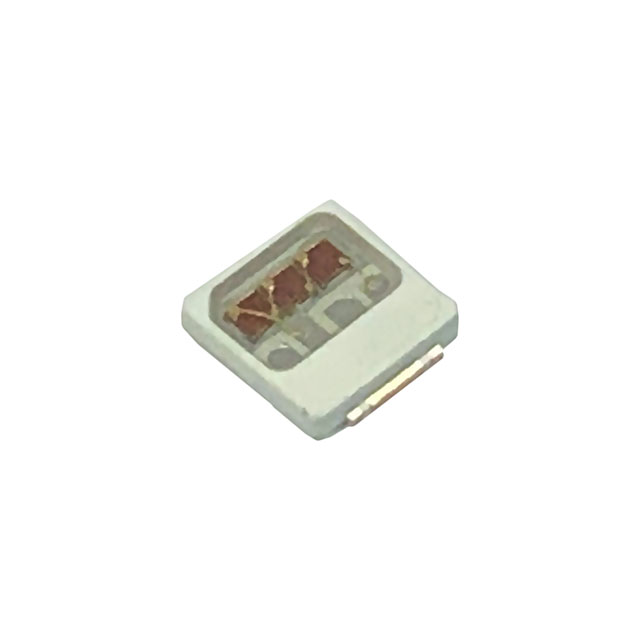

LED AB-EZP RED 625NM 3030

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED AB-EZP RED 625NM 3030

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-EZP03R-B3	AB-EZP03 Series

Color	Red	Red, Blue
Height - Seated (Max) [Max] [z]	0.52 mm	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "	0.02 "
Luminous Flux @ Current/Temperature	9 lm	6 - 9 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	24 V	12 - 24 V
Wavelength	-	455 nm
Wavelength [Max]	630 nm	465 - 630 nm
Wavelength [Min]	620 nm	445 - 620 nm

LED AB-EZP RED 625NM 3030

Part	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Wavelength
American Bright Optoelectronics Corporation AB-EZP03R-B3	Red	120 °	24 V	Surface Mount	1212	3030 Metric	3030	0.118 in	3 mm	3 mm	0.118 in	620 nm	630 nm	0.52 mm	0.02 "	9 lm
American Bright Optoelectronics Corporation AB-EZP03R-A3	Red	120 °	12 V	Surface Mount	1212	3030 Metric	3030	0.118 in	3 mm	3 mm	0.118 in	620 nm	630 nm	0.52 mm	0.02 "	9 lm
American Bright Optoelectronics Corporation AB-EZP03B-B3	Blue	120 °	24 V	Surface Mount	1212	3030 Metric	3030	0.118 in	3 mm	3 mm	0.118 in	445 nm	465 nm	0.52 mm	0.02 "	6 lm	455 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color AB-EZP Red 625nm (620nm ~ 630nm) 1212 (3030 Metric)
