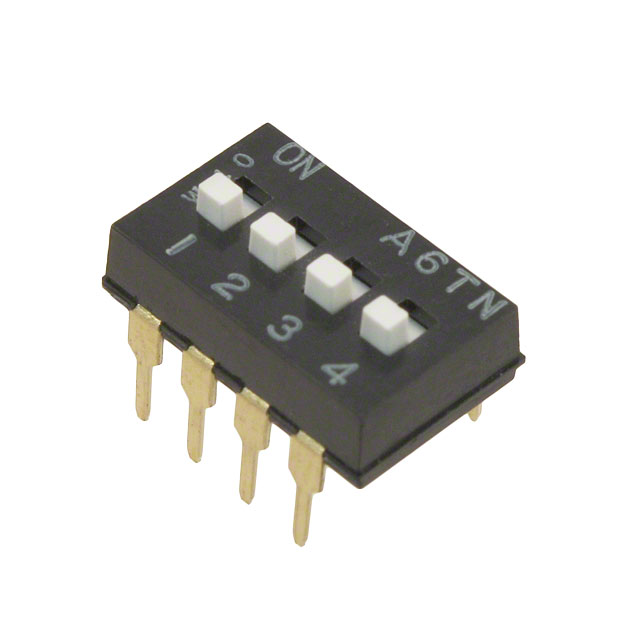

Specification	A6TN-4104

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating	0.025 A
Electrical Life (Cycles)	1000
Height Above Board	0.228 in
Length	0.476 in
Mounting Type	Through Hole
Number of Positions	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Pitch	0.1 in
Pitch Type	Full
Termination Style	PC Pin
Voltage Rating	24 V
Washable	Yes

A6T Series

Part	Voltage Rating	Circuit	Height Above Board	Pitch	Pitch Type	Mechanical Life (Cycles)	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Length	Mounting Type	Termination Style	Electrical Life (Cycles)	Actuator Type	Washable	Actuator Level	Contact Finish
Omron Electronics Inc-EMC Div A6T-8101(VNM)	24 V	SPST	0.142 in	0.1 in	Full	1000 Cycles	8	70 °C	-20 °C	0.025 A	0.837 in	Through Hole	PC Pin	1000	Slide (Standard)	No	Flush Recessed
Omron Electronics Inc-EMC Div A6TN-5104	24 V	SPST	0.228 in	0.1 in	Full		5	85 °C	-30 °C	0.025 A	0.576 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Raised
Omron Electronics Inc-EMC Div A6TN-4101	24 V	SPST	0.189 in	0.1 in	Full		4	85 °C	-30 °C	0.025 A	0.476 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Flush Recessed
Omron Electronics Inc-EMC Div A6TR-2101	24 V	SPST	0.197 in	0.1 in	Full		2	70 °C	-20 °C	0.025 A	0.196 in	Right Angle Through Hole	PC Pin	1000	Piano	No	Flush Recessed	Gold
Omron Electronics Inc-EMC Div A6T-5101(VNM)	24 V	SPST	0.142 in	0.1 in	Full	1000 Cycles	5	70 °C	-20 °C	0.025 A	0.537 in	Through Hole	PC Pin	1000	Slide (Standard)	No	Flush Recessed
Omron Electronics Inc-EMC Div A6TN-1101	24 V	SPST	0.189 in	0.1 in	Full		1	85 °C	-30 °C	0.025 A	0.176 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Flush Recessed
Omron Electronics Inc-EMC Div A6TN-6104	24 V	SPST	0.228 in	0.1 in	Full		6	85 °C	-30 °C	0.025 A	0.676 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Raised
Omron Electronics Inc-EMC Div A6TN-9104	24 V	SPST	0.228 in	0.1 in	Full		9	85 °C	-30 °C	0.025 A	0.976 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Raised
Omron Electronics Inc-EMC Div A6T-1104(VNM)	24 V	SPST	0.165 in	0.1 in	Full	1000 Cycles	1	70 °C	-20 °C	0.025 A	0.137 in	Through Hole	PC Pin	1000	Slide (Standard)	No	Raised
Omron Electronics Inc-EMC Div A6TN0003E	24 V	SPST	0.189 in	0.1 in	Full		3	85 °C	-30 °C	0.025 A	0.378 in	Through Hole	PC Pin	1000	Slide (Standard)	Yes	Flush Recessed
