638-W44-222-012
ActiveEDAC Inc.

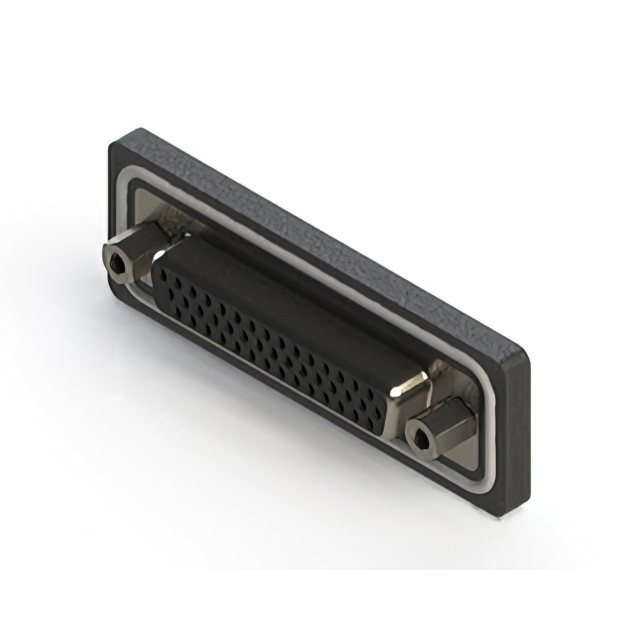

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, 638W SERIES, 44 CONTACTS, DB, SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
638-W44-222-012
ActiveEDAC Inc.
D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, 638W SERIES, 44 CONTACTS, DB, SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 638-W44-222-012 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
638-W44 Series
44 Position D-Sub, High Density Receptacle, Female Sockets Connector
