1103073-1
ActiveTE Connectivity AMP Connectors

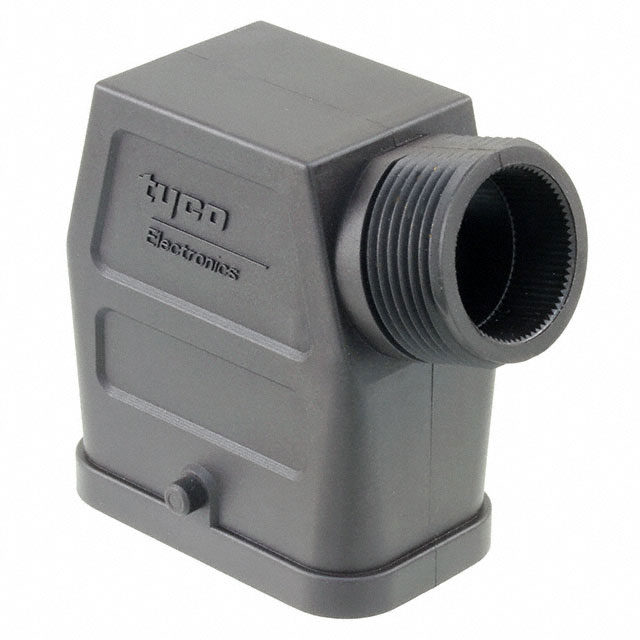

CONN HOOD SIDE ENTRY SZQ M25
Deep-Dive with AI
Search across all available documentation for this part.
1103073-1
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZQ M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1103073-1 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | Q |
| Size / Dimension [x] | 1.898 in |
| Size / Dimension [x] | 48.2 mm |
| Size / Dimension [y] | 1.142 in |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [z] | 54 mm |
| Size / Dimension [z] | 2.126 in |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103073 Series
CONN HOOD SIDE ENTRY SZQ M25
| Part | Size | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Housing Material | Connector Type | Style | Housing Color | Thread Size | Ingress Protection | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1103073-1 | Q | 54 mm | 2.126 in | 1.898 in | 48.2 mm | 1.142 in | 29 mm | Glass Filled, Nylon 6/6, Polyamide (PA66) | Hood | Side Entry | Black | M25 | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom |
Description
General part information
1103073 Series
Hood Connector Side Entry M25 Q IP65 - Dust Tight, Water Resistant
