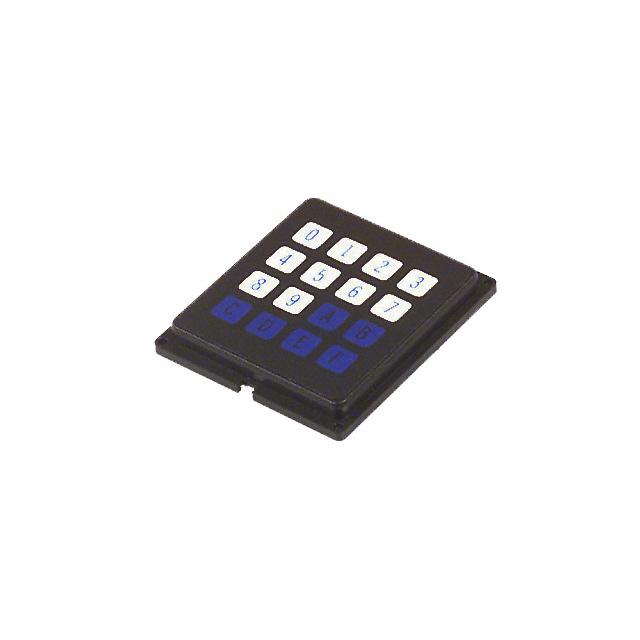

88BB2-052

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.01A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.01A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 49.61

General part information

Keypad Switch 16 Polyester Overlay Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SWITCH KEYPAD 16KEY 0.01A 24V

Part	Switch Type	Key Color	Termination Style	Illumination	Ingress Protection	Legend	Contact Rating @ Voltage	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Number of Keys	Operational Life	Output Type	Legend Color	Operating Temperature [Min]	Operating Temperature [Max]	Key Type	Mounting Type	Legend Type
Grayhill Inc. 88BB2-052	Snap Dome	Blue, White	Pin Header	Non-Illuminated	IP42	0 ~ 9, A ~ F	0.01 A, 24 VDC	4	4	16	3000000 Cycles	1.81 mOhm	Black, Blue	-40 °C	80 C	Polyester Overlay	Panel Mount, Front or Rear	Fixed
Grayhill Inc. 88BB2-072	Snap Dome	Blue	Pin Header	Non-Illuminated	IP42	0 ~ 9, A ~ F	0.01 A, 24 VDC	4	4	16	3000000 Cycles	1.81 mOhm	White	-40 °C	80 C	Polyester Overlay	Panel Mount, Front or Rear	Fixed
