76-FIFD16-250L
ActiveNTE Electronics, Inc
PVC FULLY INS FEM DISCON 50 BAG
76-FIFD16-250L
ActiveNTE Electronics, Inc
PVC FULLY INS FEM DISCON 50 BAG
Description
General part information
76-FIFD16-250L

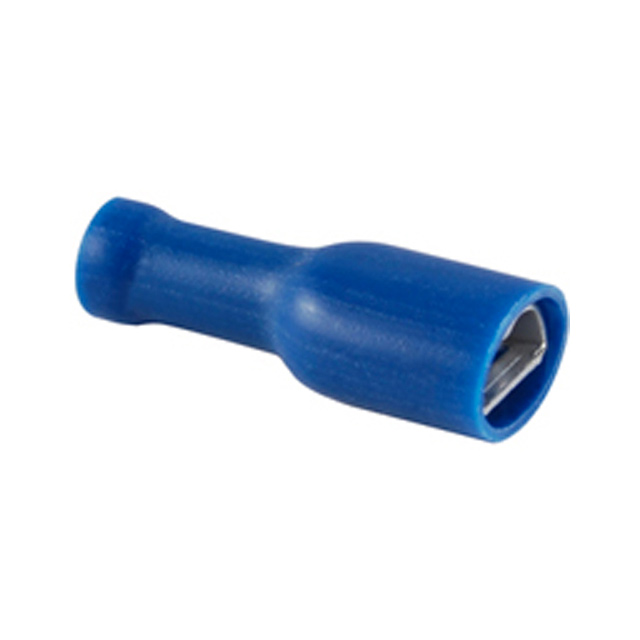

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 76-FIFD16-250L |
|---|---|
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Length - Overall | 0.866 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.311 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
