VLP6045LT-1R0N
ObsoleteTDK Corporation
FIXED IND 1UH 6.5A 17 MOHM SMD
VLP6045LT-1R0N
ObsoleteTDK Corporation
FIXED IND 1UH 6.5A 17 MOHM SMD
Description
General part information
VLP6045LT-1R0N

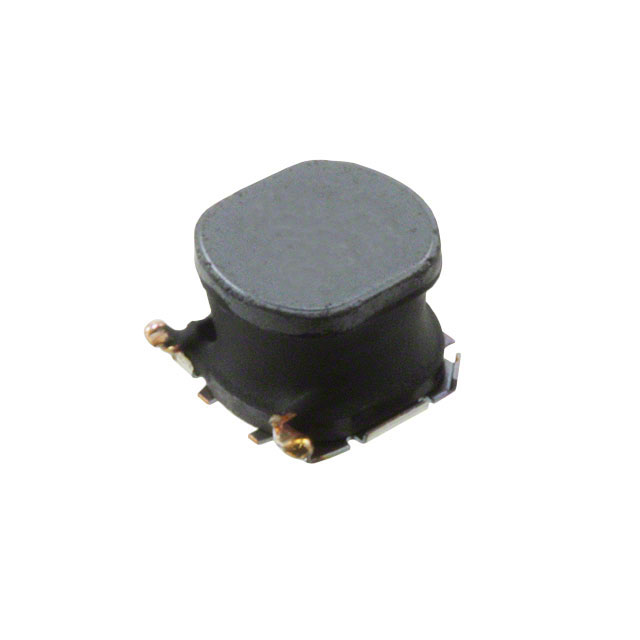

1 µH Shielded Drum Core, Wirewound Inductor 6.5 A 17mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLP6045LT-1R0N |
|---|---|
| Current - Saturation (Isat) | 8.6 A |
| Current Rating | 6.5 A |
| DC Resistance (DCR) (Max) | 17 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.268 in |
| Size / Dimension Width | 0.268 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
