PE51LP1002
ActivePasternack
2.4 GHZ TO 5.8 GHZ ULTRA-WIDEBAN
PE51LP1002
ActivePasternack
2.4 GHZ TO 5.8 GHZ ULTRA-WIDEBAN
Description
General part information
PE51LP1002

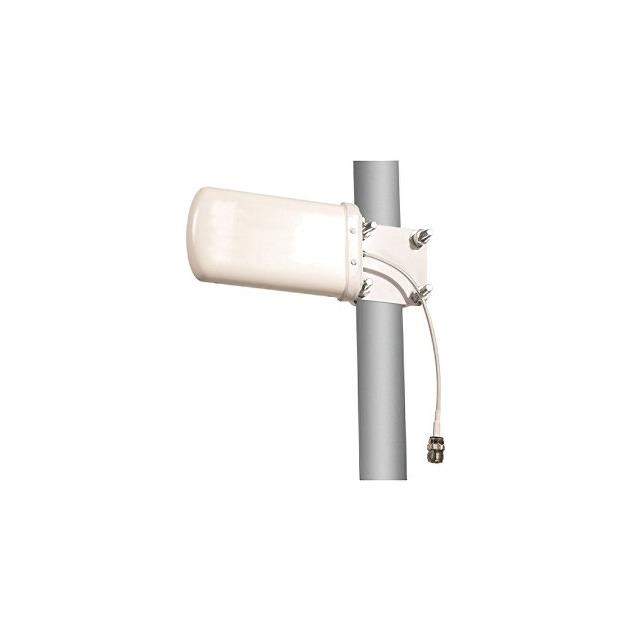

RF ANTENNA 802.11a/b/g/n/ac, WiMax™ Panel N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE51LP1002 |
|---|---|
| Antenna Type | Panel |
| Applications | 802.11a/b/g/n/ac, WiMax™ |
| Features | Cable, 228.6mm |
| Frequency (Center/Band) | 4.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 6.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 8 dBi |
| Height (Max) | 6.21 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
