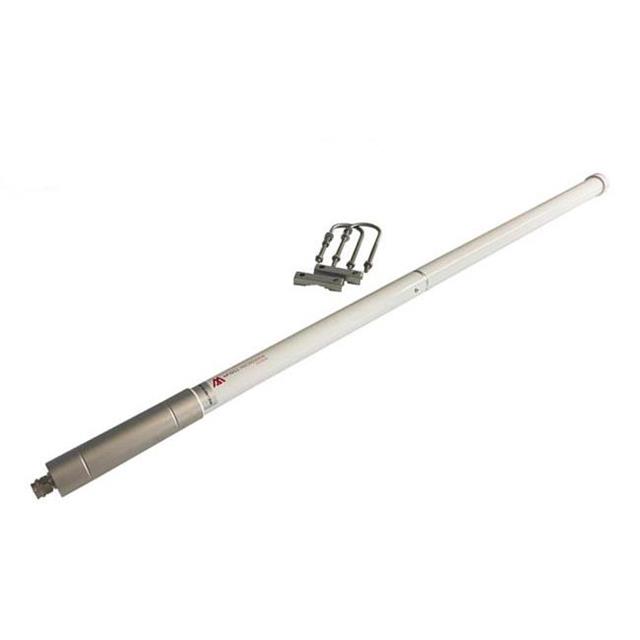

MM-ANT-NM-868-9DBI
ActiveMcGill Microwave Systems
RFID ANTENNA 865MHZ-870MHZ 9DBI
MM-ANT-NM-868-9DBI
ActiveMcGill Microwave Systems
RFID ANTENNA 865MHZ-870MHZ 9DBI
Description
General part information
MM-ANT-NM-868-9DBI
RFID Antenna 865MHz ~ 870MHz
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-ANT-NM-868-9DBI |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Features | 9dBi Gain Max |
| Frequency (Center/Band) | 867.5 MHz |
| Frequency (Max) | 870 MHz |
| Frequency (Min) | 865 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 870 MHz |
| Frequency Range (Min) | 865 MHz |
| Gain | 9 dBi |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | General ISM |
| Size / Dimension Diameter | 38 mm |
| Size / Dimension Height | 1600 mm |
| Termination Type | N Type Male |
| VSWR | 1.5 |
