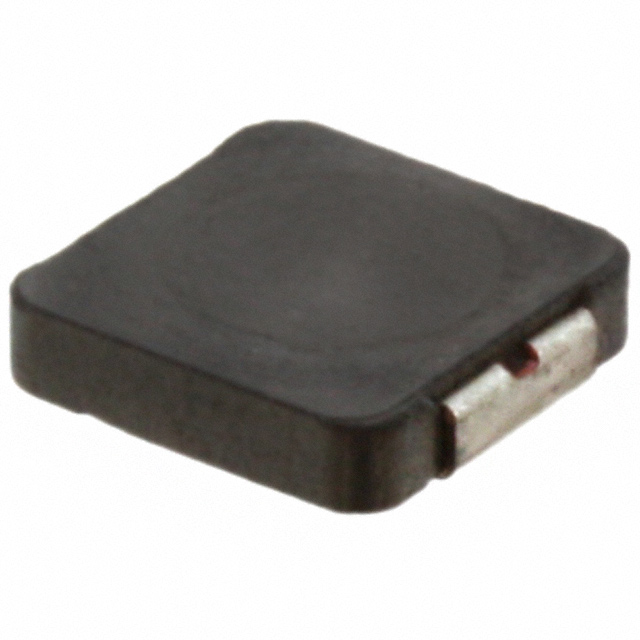

IHLP2020ABER2R2M01
ActiveVishay Dale
FIXED IND 2.2UH 3.4A 77.3MOHM SM
IHLP2020ABER2R2M01
ActiveVishay Dale
FIXED IND 2.2UH 3.4A 77.3MOHM SM
Description
General part information
IHLP2020ABER2R2M01
2.2 µH Shielded Molded Inductor 3.4 A 77.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHLP2020ABER2R2M01 |
|---|---|
| Current - Saturation (Isat) | 6 A |
| Current Rating | 3.4 A |
| DC Resistance (DCR) (Max) | 77.3 mOhm |
| Frequency - Self Resonant | 47 MHz |
| Height - Seated (Max) | 0.047 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.216 in |
| Size / Dimension Width | 0.204 in |
| Tolerance | 20 % |
| Type | Molded |
