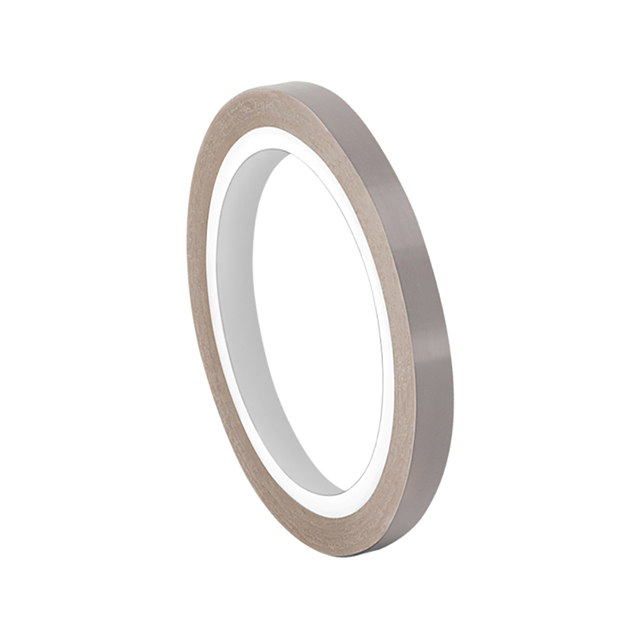

0.5-1-2045-3 (PK10)

Active

TapeCase

2045-3 GRAY SUPER SLICK TAPE MAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0.5-1-2045-3 (PK10)

Active

TapeCase

2045-3 GRAY SUPER SLICK TAPE MAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7	$ 39.18

Description

General part information

2045 Series

Film Tape Silicone Adhesive Gray X

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0.5-1-2045-3 (PK10)	2045 Series

Adhesive	Silicone	Silicone
Backing, Carrier	PTFE Film	PTFE Film
Color	Gray	Gray
Tape Type	Film	Film
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Min]	-73 °C, -100 °F	-100 - -73 °C
Thickness	3 mils	3 - 10 mils
Thickness	0.003 in	0.003 - 0.01 in
Thickness	0.076 mm	0.076 - 0.254 mm
Thickness - Adhesive	1.5 mils	1.5 mils
Thickness - Adhesive	0.0015 in	0.0015 in
Thickness - Adhesive	0.038 mm	0.038 mm
Thickness - Backing, Carrier	0.003 in	0.003 - 0.01 in
Thickness - Backing, Carrier	3 mils	3 - 10 mils
Thickness - Backing, Carrier	0.076 mm	0.076 - 0.254 mm
Thickness - Backing, Carrier	-	0.005 "
Thickness - Backing, Carrier	-	5 mils
Thickness - Backing, Carrier	-	0.127 mm
Usage	General Purpose	General Purpose
Width	-	2 "
Width	-	50.8 mm
Width	-	25.4 mm
Width	-	1 in
Width	-	1.5 "
Width	-	38.1 mm
Width	-	1 1/2

2045 Series

2045-3 GRAY SUPER SLICK TAPE MAD

...

Part	Usage	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Temperature Range [Min]	Temperature Range [Max]	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Tape Type	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
TapeCase 1.875-36-2045-3	General Purpose	PTFE Film	0.003 in	3 mils	0.076 mm	Gray	-100 °F, -73 °C	260 °C	Silicone	1.5 mils	0.0015 in	0.038 mm	3 mils	0.003 in	0.076 mm	Film
TapeCase 4-18-2045-10	General Purpose	PTFE Film	0.01 "	10 mils	0.254 mm	Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm	Film
TapeCase 0.875-5-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 7-36-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 8-36-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 9-5-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 0.875-36-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 7-18-2045-10	General Purpose	PTFE Film	0.01 "	10 mils	0.254 mm	Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	10 mils	0.01 "	0.254 mm	Film
TapeCase 2.25-36-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
TapeCase 12-5-2045-5	General Purpose	PTFE Film				Gray			Silicone	1.5 mils	0.0015 in	0.038 mm	5 mils	0.005 in	0.127 mm	Film	0.005 "	5 mils	0.127 mm
