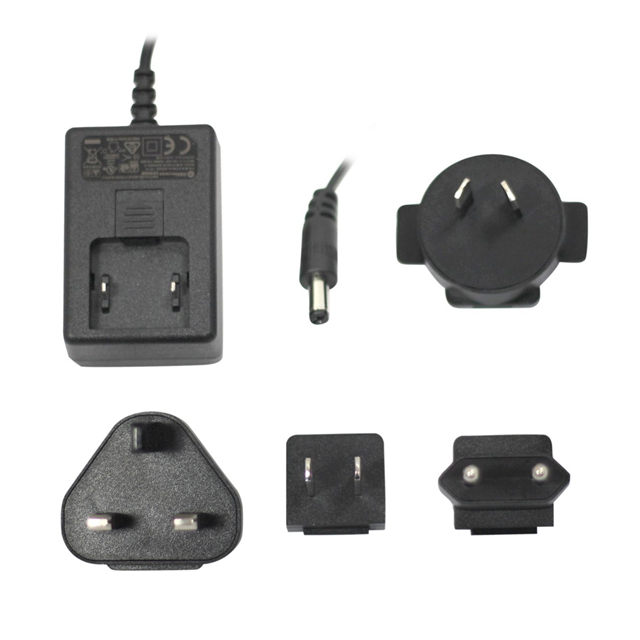

15DYS824-240100W-K

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 24V 24W

Search across all available documentation for this part.

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 24V 24W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 24V 24W

Part	Standard Number	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Input Type	Cord Length	Cord Length	Current - Output (Max) [Max]	Approval Agency	Region Utilized	No Load Power Consumption	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Polarization	Form	Voltage - Output	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
IDEAL POWER 15DYS824-240100W-K	60950-1	Multi-Blade (Included)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	24 W	40 °C	0 °C	86.2 %	Multi-Blade (Included)	1.5 m	59 in	1 A	CE, GS, SAA, UL	International	100 mW	ITE (Commercial)	90 VAC	264 VAC	Positive Center	Wall Mount (Class II)	24 V	3.02 "	76.8 mm	1.87 "	1.38 in	47.5 mm	35 mm
IDEAL POWER 15DYS824-300080W-K	60950-1	Multi-Blade (Included)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	24 W	40 °C	0 °C	86.2 %	Multi-Blade (Included)	1.5 m	59 in	800 mA	CE, GS, SAA, UL	International	100 mW	ITE (Commercial)	90 VAC	264 VAC	Positive Center	Wall Mount (Class II)	30 VDC	3.02 "	76.8 mm	1.87 "	1.38 in	47.5 mm	35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
