1-104257-1
ActiveTE Connectivity AMP Connectors

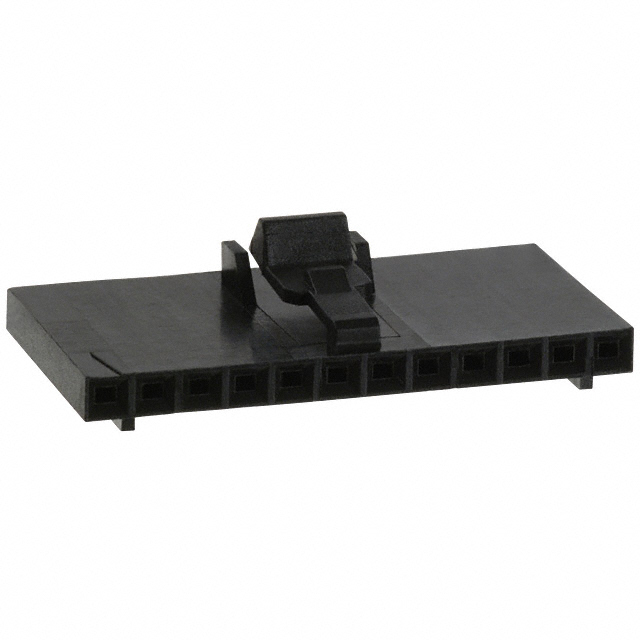

CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-104257-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-104257-1 | 104257 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 2 - 24 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.10 | |||
| 50 | $ 1.04 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.81 | |||
| 2500 | $ 0.75 | |||
104257 Series
CONN RCPT HSG 21POS 2.54MM
| Part | Connector Type | Mounting Type | Fastening Type | Color | Contact Termination | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Note | Contact Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-104257-0 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 21 | Contacts Not Included | Female Socket | |||
TE Connectivity AMP Connectors 1-104257-2 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 13 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 2-104257-4 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C | |
TE Connectivity AMP Connectors 104257-3 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 4 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 1-104257-4 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 15 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 104257-9 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 10 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 104257-6 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 7 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 2-104257-2 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 23 | Contacts Not Included | Female Socket | |||
TE Connectivity AMP Connectors 2-104257-3 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 24 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 1-104257-1 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 12 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 2-104257-1 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 22 positions | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 104257-5 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 6 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
TE Connectivity AMP Connectors 104257-1 | Receptacle | Free Hanging (In-Line) | Latch Lock | Black | Crimp | 1 | 2.54 mm | 0.1 in | 2 | Contacts Not Included | Female Socket | Thermoplastic | -65 ░C | 105 ░C |
Description
General part information
104257 Series
12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
