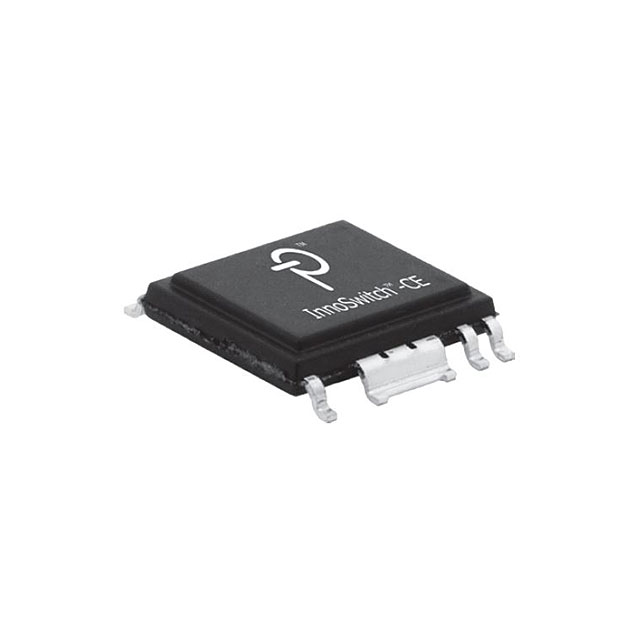

INN2603K
UnknownPower Integrations
IC OFFLINE SWITCH FLYBACK 16ESOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INN2603K
UnknownPower Integrations
IC OFFLINE SWITCH FLYBACK 16ESOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INN2603K |
|---|---|
| Duty Cycle | 60 % |
| Fault Protection | Over Temperature, Current Limiting, Over Voltage |
| Frequency - Switching | 100 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Isolated |
| Package / Case [custom] | 16-PowerSOIC |
| Package / Case [custom] | 8.89 mm, 0.35 in |
| Package / Case [custom] | 15 |
| Power (Watts) | 24 W |
| Supplier Device Package | eSOP-R16B |
| Topology | Flyback |
| Voltage - Breakdown | 725 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
INN2603K
Converter Offline Flyback Topology 100kHz eSOP-R16B
Documents
Technical documentation and resources
