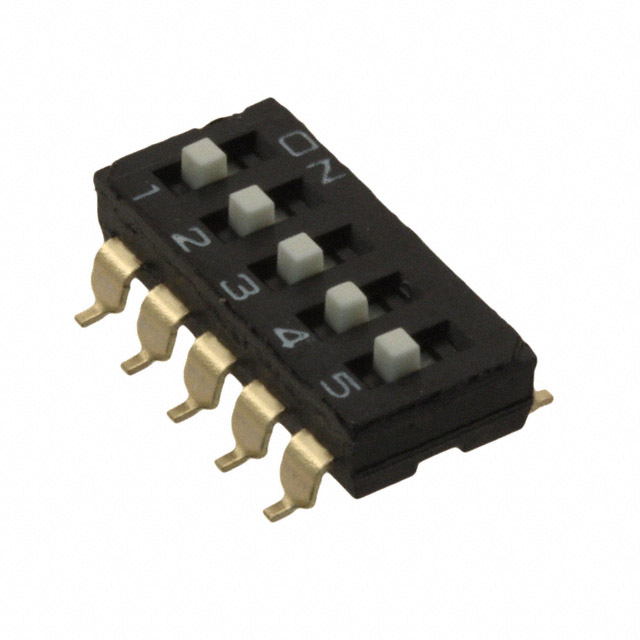

A6S-5104-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Washable	Length	Length	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Current Rating (Amps)	Circuit	Electrical Life	Termination Style	Contact Finish	Voltage Rating	Height Above Board	Height Above Board	Actuator Type	Mechanical Life	Pitch [x]	Pitch	Pitch [x]
Omron Electronics Inc-EMC Div A6S-5104-H(VNM)		0.537 in	13.64 mm	Surface Mount	-20 C	70 °C	Raised	25 mA	SPST	1000 Cycles	Gull Wing	Gold	24 VDC	4.4 mm	0.173 in	Slide (Standard)	1000 Cycles	0.1 in	Full	2.54 mm
