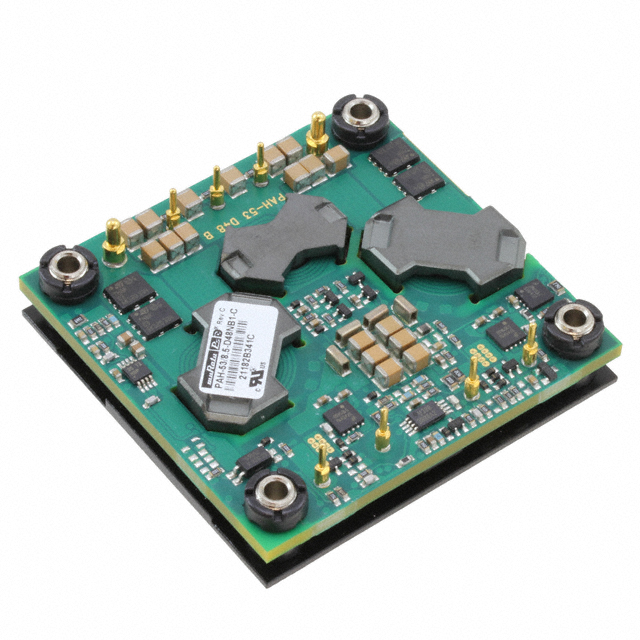

PAH-53/8.5-D48NB1-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 53V 450W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 53V 450W

Technical Specifications

Parameters and characteristics for this part

Specification	PAH-53/8.5-D48NB1-C

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	8.5 A
Efficiency	94 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module, 1/2 Brick
Power (Watts)	450 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	58.4 mm
Size / Dimension [y]	2.3 "
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	53 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DC DC CONVERTER 53V 450W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Control Features	Features	Voltage - Output 1	Mounting Type	Type	Voltage - Input (Max) [Max]	Applications	Efficiency	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation
Murata Power Solutions Inc. PAH-53/8.5-D48NB1-C	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	Active Low, Enable	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	53 V	Through Hole	Isolated Module	75 V	ITE (Commercial)	94 %	36 V	450 W	85 °C	-40 °C	1	9-DIP Module, 1/2 Brick	8.5 A	2250 VDC

General part information

Isolated Module DC DC Converter 1 Output 53V 8.5A 36V - 75V Input
