Description
General part information

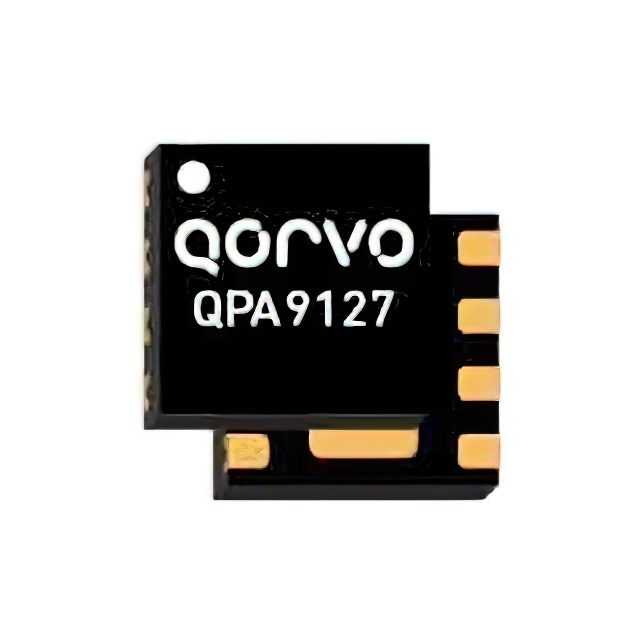

QPA9127TR7
RF Amplifier IC General Purpose 1GHz ~ 6GHz 8-DFN (2x2)
Technical Specifications
Parameters and characteristics for this part
| Specification | QPA9127TR7 |
|---|---|
| Current - Supply | 70 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 1 GHz |
| Gain | 20 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 1.4 dB |
| P1dB | 19.5 dBm |
| Package / Case | 8-VFDFN Exposed Pad |
| Package Length | 2 mm |
| Package Name | 8-DFN |
| Package Width | 2 mm |
| RF Type | General Purpose |
| Test Frequency (Maximum) | 6 GHz |
| Test Frequency (Minimum) | 1 GHz |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 3.3 V |
