2834274

Active

Phoenix Contact

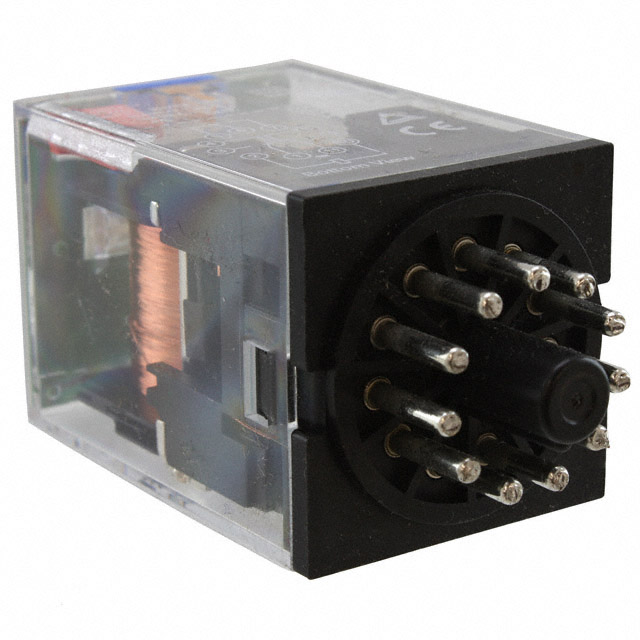

RELAY GEN PURPOSE 3PDT 10A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 3PDT 10A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2834274	28342 Series

Coil Current	56 mA	20 - 56 mA
Coil Resistance	430 Ohms	1.52 - 430 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 120 VAC
Contact Form	3PDT (3 Form C)	DPDT (2 Form C), 3PDT (3 Form C)
Contact Material	Silver (Ag)	Silver (Ag)
Contact Rating (Current)	10 A	10 A
Mounting Type	Socketable	Socketable
Operate Time	12 ms	12 - 20 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Relay Type	General Purpose	General Purpose
Release Time	6 ms	6 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Plug In, 11 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal)

RELAY GEN PURPOSE DPDT 10A 120V

Part	Operate Time	Contact Form	Coil Voltage	Release Time	Contact Material	Mounting Type	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Type	Coil Resistance	Contact Rating (Current)	Relay Type	Coil Current
Phoenix Contact 2834258	20 ms	DPDT (2 Form C)	120 VAC	20 ms	Silver (Ag)	Socketable	250 VAC, 250 VDC	-10 °C	40 °C	Plug In, 8 Pin (Octal)	Non Latching	1.52 kOhms	10 A	General Purpose	20 mA
Phoenix Contact 2834274	12 ms	3PDT (3 Form C)	24 VDC	6 ms	Silver (Ag)	Socketable	250 VAC, 250 VDC	-10 °C	40 °C	Plug In, 11 Pin (Octal)	Non Latching	430 Ohms	10 A	General Purpose	56 mA
Phoenix Contact 2834232	12 ms	DPDT (2 Form C)	24 VDC	6 ms	Silver (Ag)	Socketable	250 VAC, 250 VDC	-10 °C	40 °C	Plug In, 8 Pin (Octal)	Non Latching	430 Ohms	10 A	General Purpose	56 mA
