AAA3FPBZH

Active

Switchcraft Inc.

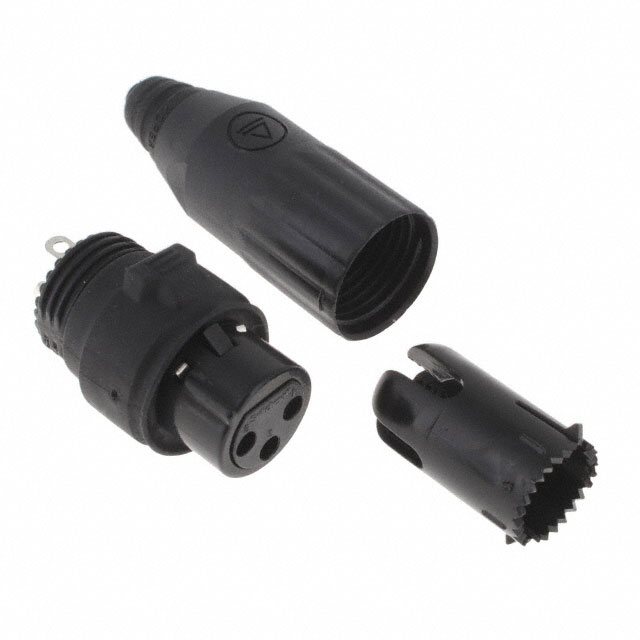

CONN PLUG FMALE XLR 3P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3FPBZH

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.01

Description

General part information

AAA3FP Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA3FPBZH	AAA3FP Series

Applications	Audio, Instrumentation	Audio, Instrumentation, Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Chrome, Zinc	Chrome, Zinc, Nickel, Zinc Alloy
Cable Opening	-	2.54 - 5.59 mm
Cable Opening	-	0.1 - 0.22 in
Cable Opening [Max] [diameter]	7.24 mm	7.24 mm
Cable Opening [Max] [diameter]	0.285 in	0.285 in
Cable Opening [Min] [diameter]	0.15 in	0.15 in
Cable Opening [Min] [diameter]	3.81 mm	3.81 mm
Color	Black	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	-	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66	IP66
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Voltage Rating	-	125 VAC

AAA3FP Series

CONN PLUG FMALE XLR 3P SLDR CUP

Part	Color	Contact Material	Shell Material	Applications	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Connector Type	Contact Finish - Mating	Ingress Protection	Orientation	Insert Material	Features	Shell Size - Insert	Backshell Material, Plating	Shell Finish	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shielding	Voltage Rating	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]
Switchcraft Inc. AAA3FPBZH	Black	Copper Alloy	Zinc Alloy	Audio, Instrumentation	0.15 in	3.81 mm	7.24 mm	0.285 in	Female Sockets, Plug	Silver	IP66	Keyed	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Chrome, Zinc	Chrome	Free Hanging (In-Line)	Latch Lock	65 °C	-40 °C	Metal	Shielded
Switchcraft Inc. AAA3FPBZ	Black	Copper Alloy	Zinc Alloy	Audio, Industrial, Instrumentation, Medical					Female Sockets, Plug	Silver		Keyed	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Chrome, Zinc	Chrome	Free Hanging (In-Line)	Latch Lock			Metal	Shielded	125 VAC	15 A	2.54 mm, 5.59 mm	0.1 in, 0.22 in
Switchcraft Inc. AAA3FPZ	Silver	Copper Alloy	Zinc Alloy	Audio, Industrial, Instrumentation, Medical					Female Sockets, Plug	Silver		Keyed	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Nickel, Zinc Alloy	Nickel	Free Hanging (In-Line)	Latch Lock			Metal	Shielded	125 VAC	15 A	2.54 mm, 5.59 mm	0.1 in, 0.22 in
Switchcraft Inc. AAA3FPZH	Silver	Copper Alloy	Zinc Alloy	Audio, Instrumentation	0.15 in	3.81 mm	7.24 mm	0.285 in	Female Sockets, Plug	Silver	IP66	Keyed	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Nickel, Zinc Alloy	Nickel	Free Hanging (In-Line)	Latch Lock	65 °C	-40 °C	Metal	Shielded
Switchcraft Inc. AAA3FPBAUZH	Black	Copper Alloy	Zinc Alloy	Audio, Instrumentation	0.15 in	3.81 mm	7.24 mm	0.285 in	Female Sockets, Plug	Gold	IP66	Keyed	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Chrome, Zinc	Chrome	Free Hanging (In-Line)	Latch Lock	65 °C	-40 °C	Metal	Shielded
