VLF2916-683
ActiveAllied Components International
CMC 68MH 900MA 2LN TH
VLF2916-683
ActiveAllied Components International
CMC 68MH 900MA 2LN TH
Description
General part information

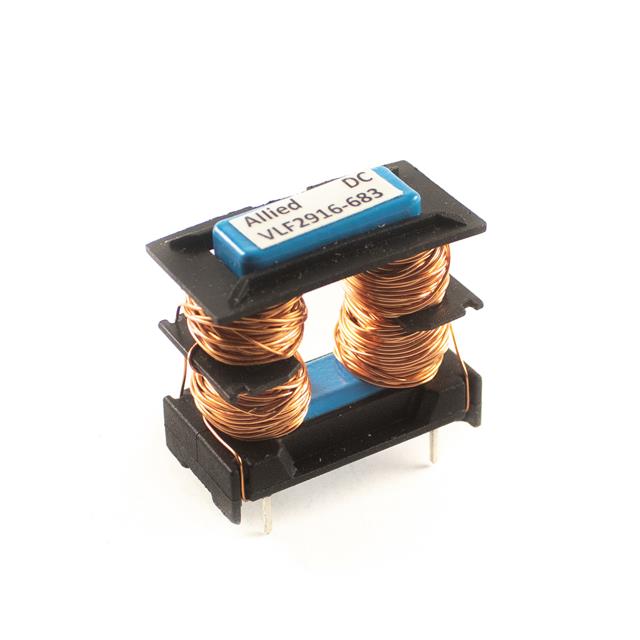

VLF2916-683
68 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 900mA DCR 1.1Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF2916-683 |
|---|---|
| Current Rating (Max) | 900 mA |
| DC Resistance (DCR) (Max) | 1.1 Ohm |
| Height (Max) | 1.102 in |
| Inductance | 68 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.142 in |
| Size / Dimension Width | 1.102 in |
