Description
General part information
S2M

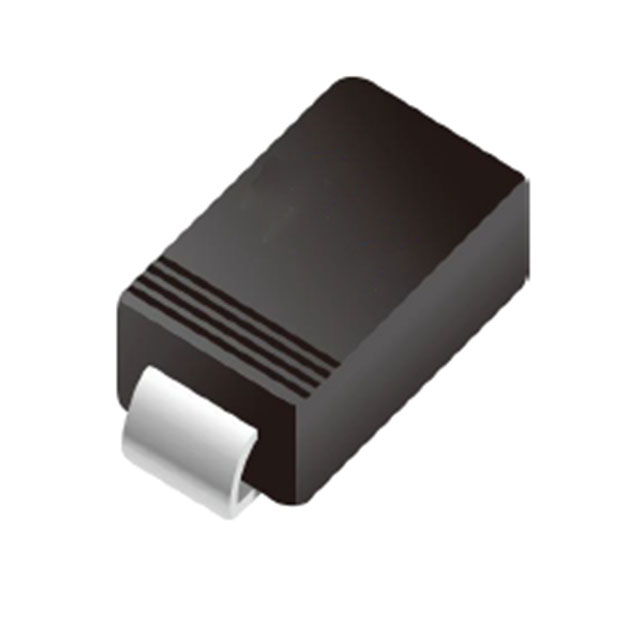

Diode 1000 V 2A Surface Mount SMA
Technical Specifications
Parameters and characteristics for this part
| Specification | S2M |
|---|---|
| Capacitance | 25 pF |
| Current - Average Rectified (Io) | 2 A |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SOD-214AC, SMA |
| Package Name | SMA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1 kV |
| Voltage - Forward (Vf) (Max) | 1.15 V |
