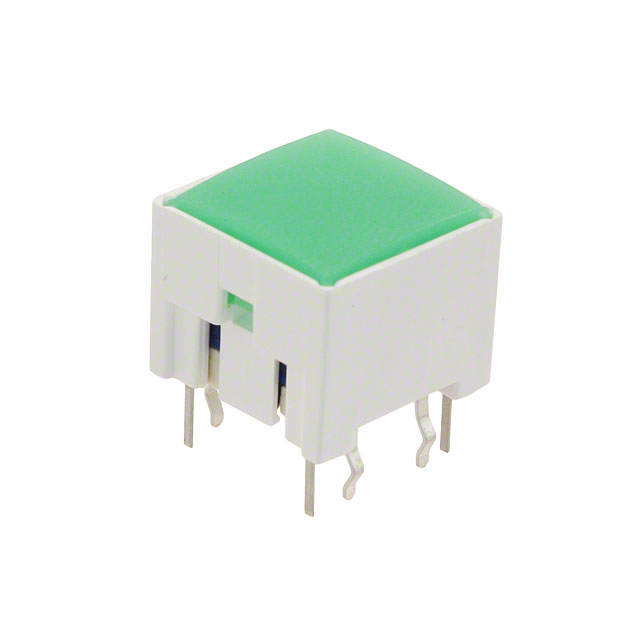

SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.14.001.552/0000
ActiveRAFI USA
SWITCH TACTILE SPST-NO 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1.14.001.552/0000 | 1.14.001 Series |
|---|---|---|
| - | - | |
| Actuator Height off PCB, Vertical | 9.7 mm | 9.7 mm |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Square Button | Square Button |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 42 VAC/DC, 0.1 A | 0.1 - 42 VAC/DC |
| Illumination | Illuminated | Illuminated |
| Illumination Type, Color | LED, Green | LED, Yellow, Green |
| Illumination Voltage (Nominal) | 1.8 VDC | 1.8 - 1.9 VDC |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Through Hole | Through Hole |
| Operating Force | 330 gf | 330 gf |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 11.35 mm | 11.35 mm |
| Outline [y] | 11.35 mm | 11.35 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.34 mm | 0.34 mm |
| Termination Style | PC Pin | PC Pin |
1.14.001 Series
SWITCH TACTILE
| Part | Outline [x] | Outline [y] | Contact Rating @ Voltage | Switch Function | Circuit | Actuator Orientation | Termination Style | Illumination Voltage (Nominal) | Actuator Type | Actuator Height off PCB, Vertical | Operating Force | Illumination | Illumination Type, Color | Operating Temperature [Min] | Operating Temperature [Max] | Switch Travel | Mechanical Life | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAFI USA 1.14.001.012/0000 | ||||||||||||||||||
RAFI USA 1.14.001.013/0000 | ||||||||||||||||||
RAFI USA 1.14.001.927/0000 | ||||||||||||||||||
RAFI USA 1.14.001.926/0000 | ||||||||||||||||||
RAFI USA 1.14.001.003/0000 | ||||||||||||||||||
RAFI USA 1.14.001.918/0000 | ||||||||||||||||||
RAFI USA 1.14.001.002/0000 | ||||||||||||||||||
RAFI USA 1.14.001.302/0000 | ||||||||||||||||||
RAFI USA 1.14.001.554/0000 | 11.35 mm | 11.35 mm | 0.1 A, 42 VAC/DC | Off-Mom | SPST-NO | Top Actuated | PC Pin | 1.9 VDC | Square Button | 9.7 mm | 330 gf | Illuminated | LED, Yellow | -40 °C | 80 C | 0.34 mm | 1000000 Cycles | Through Hole |
RAFI USA 1.14.001.001/0000 |
