1415119

Active

Phoenix Contact

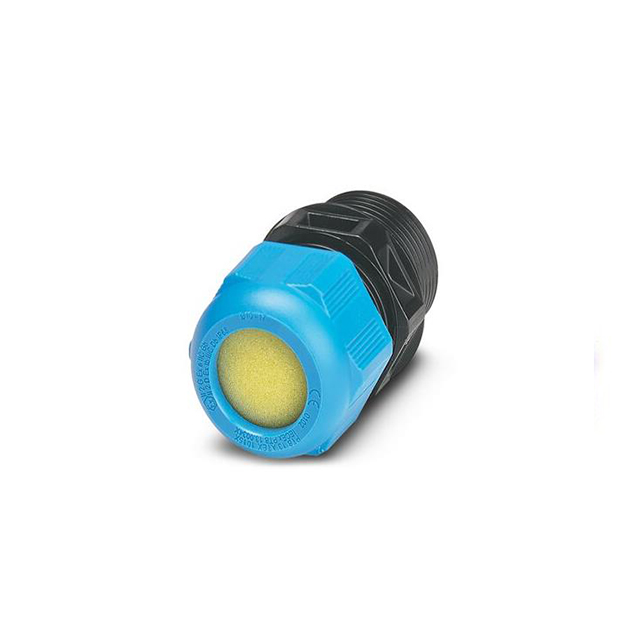

CABLE GLAND 13-21MM M32 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-21MM M32 POLYAMID

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415119	G-ESIS-M32 Series

Color	Black, Blue	Black, Blue
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in	0.827 in
Outside Cable Diameter (Min)	13 mm	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in	0.512 in
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M32	M32
Type	Cable Gland	Cable Gland

CABLE GLAND 13-21MM M32 POLYAMID

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Thread Size	Material	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)
Phoenix Contact 1415119	-40 °C	75 ░C	Cable Gland	M32	Polyamide (PA), Nylon	IP66/IP68	21 mm	0.827 in	Seal	Black, Blue	0.591 in	15 mm	0.512 in	13 mm
Phoenix Contact 1415110	-40 °C	75 ░C	Cable Gland	M32	Polyamide (PA), Nylon	IP66/IP68	21 mm	0.827 in	Seal	Black	0.591 in	15 mm	0.512 in	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 8.32

General part information

Cable Gland Polyamide (PA), Nylon M32 Black, Blue
