AS03508CO-2-R
ActivePUI AUDIO

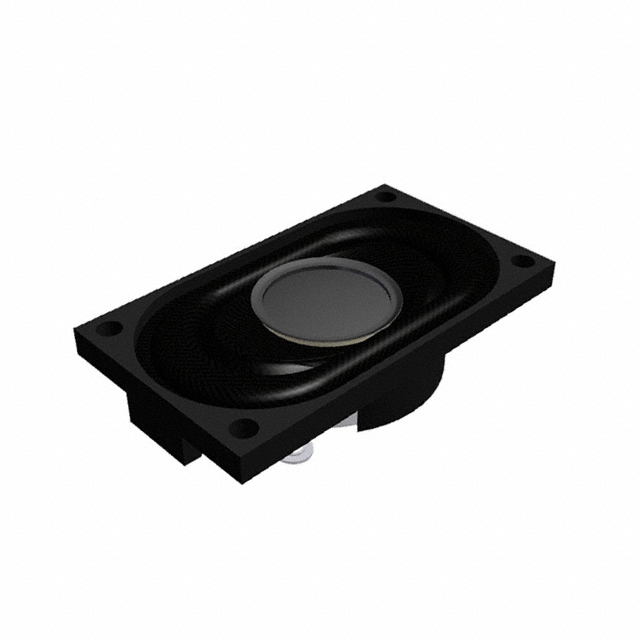

SPEAKERS & TRANSDUCERS DYNAMIC 1W 8 OHM 84DBA OVAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS03508CO-2-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS DYNAMIC 1W 8 OHM 84DBA OVAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AS03508CO-2-R | AS Series |
|---|---|---|
| - | - | |
| Efficiency - dBA | 84 dBA | 84 - 91 dBA |
| Efficiency - Testing | 1 mW/100mm | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL), Sensitivity |
| Frequency - Self Resonant | 500 Hz | 500 Hz |
| Frequency Range [Max] | 20 kHz | 20 kHz |
| Frequency Range [Min] | 500 Hz | 500 Hz |
| Height - Seated (Max) [Max] [z] | 8 mm | 2.5 - 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in | 0.098 - 0.315 in |
| Impedance | 8 Ohms | 8 Ohms |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Material - Cone | Cloth | Cloth |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B |
| Port Location | Top | Top |
| Power - Max [Max] | 2 W | 1 - 2 W |
| Power - Rated | 1 W | 1 - 700 W |
| Shape | Oval, Rectangular Frame | Oval, Rectangular Frame, Rectangular |
| Size / Dimension [x] | 35 mm | 15 - 35 mm |
| Size / Dimension [x] | 1.378 " | 0.591 - 1.378 " |
| Size / Dimension [y] | 0.787 in | 0.433 - 0.787 in |
| Size / Dimension [y] | 20 mm | 11 - 20 mm |
| Technology | Magnetic | Magnetic |
| Termination | Solder Eyelet(s) | Solder Eyelet(s), Solder Pads |
| Type | General Purpose | General Purpose, Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AS Series
Speakers & Transducers SPEAKER .7W 8 OHM 91 DB 500 HZ
| Part | Efficiency - dBA | Material - Cone | Frequency Range [Max] | Frequency Range [Min] | Material - Magnet | Type | Port Location | Shape | Impedance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power - Max [Max] | Termination | Power - Rated | Technology | Frequency - Self Resonant | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Efficiency - Testing | Efficiency - Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO AS03508CO-2-R | 84 dBA | Cloth | 20 kHz | 500 Hz | Nd-Fe-B | General Purpose | Top | Oval, Rectangular Frame | 8 Ohms | 8 mm | 0.315 in | 2 W | Solder Eyelet(s) | 1 W | Magnetic | 500 Hz | 35 mm | 0.787 in | 1.378 " | 20 mm | 1 mW/100mm | Sound Pressure Level (SPL) | |
PUI AUDIO AS03508CO-2-R | |||||||||||||||||||||||
PUI AUDIO AS01508MS-SP15-WP-R | 91 dBA | 20 kHz | 500 Hz | Nd-Fe-B | Receiver | Top | Rectangular | 8 Ohms | 2.5 mm | 0.098 in | 1 W | Solder Pads | 700 mW | Magnetic | 500 Hz | 15 mm | 0.433 in | 0.591 in | 11 mm | Sensitivity | IP67 - Dust Tight, Waterproof | ||
PUI AUDIO AS01508MS-SP15-WP-R |
