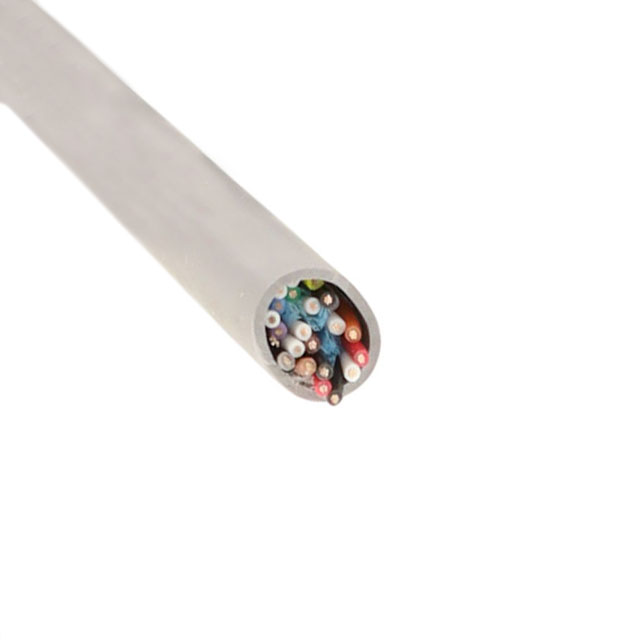

M4758 SL005
ActiveALPHA WIRE
MULTI-PAIR 22COND 24AWG
Deep-Dive with AI
Search across all available documentation for this part.
M4758 SL005
ActiveALPHA WIRE
MULTI-PAIR 22COND 24AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M4758 SL005 | M4758 Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Rip Cord, Drain Wire | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 9.14 mm | 9.14 mm |
| Jacket (Insulation) Diameter [diameter] | 0.36 " | 0.36 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length [x] | 30.5 m | 30.5 - 152.4 m |
| Length [x] | 100 ft | 100 - 500 ' |
| Number of Conductors | 22 | 22 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Ratings | UL Style 2464 | UL Style 2464 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
M4758 Series
MULTI-PAIR 22COND 24AWG
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Cable Type | Number of Conductors | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Length [x] | Length [x] | Conductor Insulation | Shield Coverage | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE M4758 SL002 | 32 AWG | 7 | Aluminum | UL Style 2464 | 9.14 mm | 0.36 " | 300 V | Slate | Poly-Vinyl Chloride (PVC) | 24 AWG | Multi-Pair | 22 | Copper, Tinned | -20 C | 80 C | Drain Wire, Rip Cord | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | 100 % | Foil |
ALPHA WIRE M4758 SL005 | 32 AWG | 7 | Aluminum | UL Style 2464 | 9.14 mm | 0.36 " | 300 V | Slate | Poly-Vinyl Chloride (PVC) | 24 AWG | Multi-Pair | 22 | Copper, Tinned | -20 C | 80 C | Drain Wire, Rip Cord | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | 100 % | Foil |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M4758 Series
22 (11 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 100.0' (30.5m)
