3241116

Active

Phoenix Contact

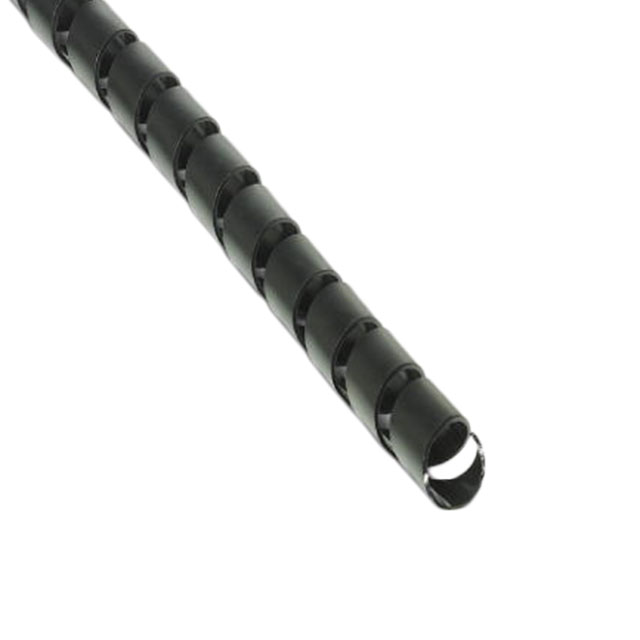

SPIRAL WRAP BLACK 1=25M SPOOL

Search across all available documentation for this part.

Active

Phoenix Contact

SPIRAL WRAP BLACK 1=25M SPOOL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3241116	WG-S HF Series

Color	Black	Black, Clear
Diameter - Inside, Expanded	-	5.906 in
Diameter - Inside, Expanded [diameter]	50 mm	15 - 150 mm
Diameter - Inside, Expanded [diameter]	1.969 in	0.591 - 1.969 in
Diameter - Inside, Non-Expanded [diameter]	0.472 in	0.079 - 0.984 in
Diameter - Inside, Non-Expanded [diameter]	12 mm	2 - 25 mm
Length	-	20 m
Length	-	65.62 ft
Length [x]	82.02 ft	82.02 - 164 ft
Length [x]	25 m	25 - 50 m
Material	Polyethylene (PE), Halogen Free	Polyethylene (PE), Halogen Free
Material Flammability Rating	UL94 HB	UL94 HB
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-50 °C	-50 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness

SPIRAL WRAP 0.157" X 82.02' BLK

Part	Color	Type	Material Flammability Rating	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Length	Length
Phoenix Contact 3241112	Black	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	0.787 in	20 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	4 mm	0.157 in
Phoenix Contact 3241113	Clear	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	1.575 in	40 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	7 mm	0.276 in
Phoenix Contact 3241123	Clear	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free		150 mm	Harness	85 °C	-50 °C			25 mm	0.984 in	5.906 in	20 m	65.62 ft
Phoenix Contact 3241115	Clear	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	1.969 in	50 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	12 mm	0.472 in
Phoenix Contact 3241109	Clear	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	0.591 in	15 mm	Harness	85 °C	-50 °C	164 ft	50 m	2 mm	0.079 in
Phoenix Contact 3241111	Clear	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	0.787 in	20 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	4 mm	0.157 in
Phoenix Contact 3241114	Black	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	1.575 in	40 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	7 mm	0.276 in
Phoenix Contact 3241116	Black	Spiral Wrap	UL94 HB	Polyethylene (PE), Halogen Free	1.969 in	50 mm	Harness	85 °C	-50 °C	82.02 ft	25 m	12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 9.88

General part information

Spiral Wrap X 82.02' (25.00m) Black
