1412800
ActivePhoenix Contact

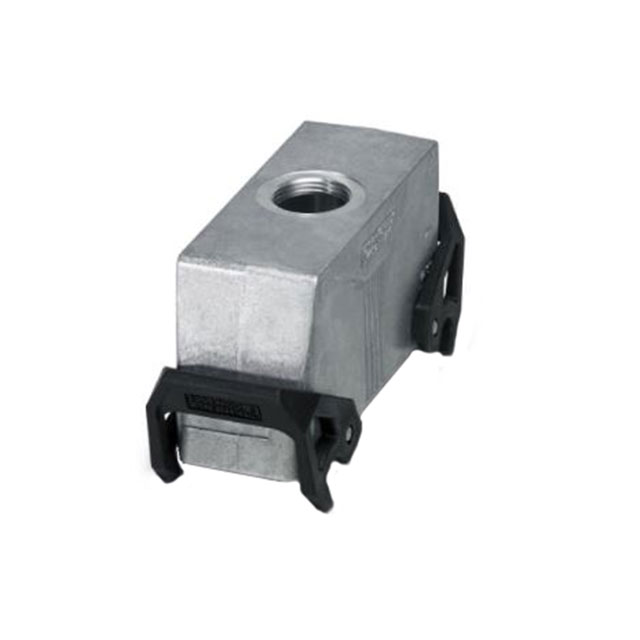

CONN HOOD TOP ENTRY SZB24 M32
1412800
ActivePhoenix Contact
CONN HOOD TOP ENTRY SZB24 M32
Description
General part information
1412800
Hood Connector Top Entry M32 B24 IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412800 |
|---|---|
| Connector Type | Hood |
| Features | Salt Water Resistant |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP69K |
| Lock Location | Locking Clip (2) on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 2.362 in |
| Size / Dimension Length | 4.724 in |
| Size / Dimension Width | 1.732 in |
| Style | Top Entry |
| Thread Size | M32 |
