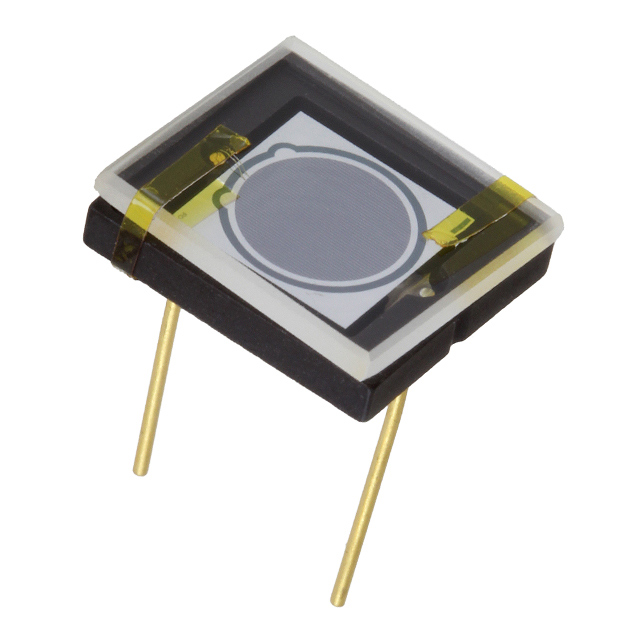

AXUV20HS1

Active

Opto Diode Corp

SENSOR PHOTODIODE 820NM

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 820NM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 820nm

Technical documentation and resources

Specification	AXUV20HS1	AXUV20 Series

Accessory Type	-	Socket
Active Area	19.7 mm²	3 - 19.7 mm²
Current - Dark (Typ)	100 nA	100 nA
For Use With/Related Products	-	Photodiode, UVG20S, AXUV20A, AXUV20HS1, SXUV20HS1
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Response Time	-	200 ns
Spectral Range [Max] [custom]	1100 nm	1100 nm
Spectral Range [Min] [custom]	250 nm	250 nm
Voltage - DC Reverse (Vr) (Max) [Max]	160 V	160 V
Wavelength	820 nm	820 nm

Part	Mounting Type	Wavelength	Active Area	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	For Use With/Related Products	Accessory Type	Current - Dark (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]
Opto Diode Corp AXUV20ELG	Through Hole	820 nm	3 mm²	200 ns	-10 °C	40 °C	250 nm	1100 nm
Opto Diode Corp AXUV20A									Photodiode	Socket
Opto Diode Corp AXUV20HS1	Through Hole	820 nm	19.7 mm²		-10 °C	40 °C	250 nm	1100 nm			100 nA	160 V
Opto Diode Corp AXUV20ACS									AXUV20A, AXUV20HS1, SXUV20HS1, UVG20S	Socket
