BK/SFE-20
ActiveEaton - Electronics Division

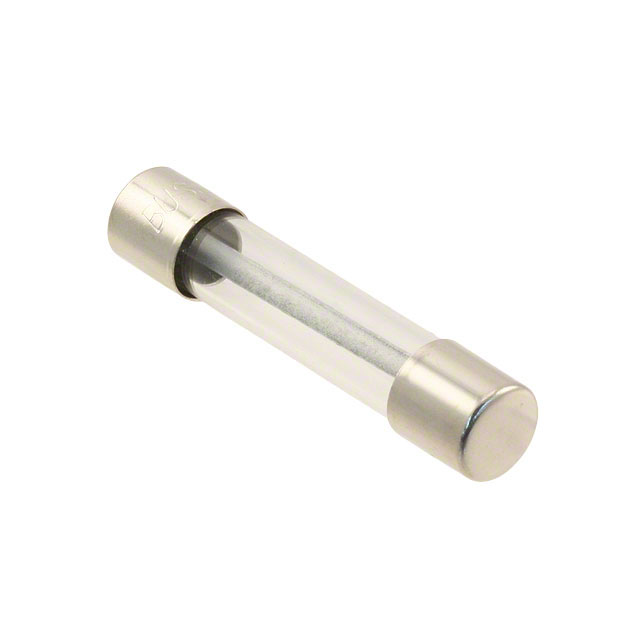

FUSE GLASS 20A 32VDC 3AB 3AG
BK/SFE-20
ActiveEaton - Electronics Division
FUSE GLASS 20A 32VDC 3AB 3AG
Description
General part information
BK/SFE-20
20 A AC 32 V DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/SFE-20 |
|---|---|
| Approval Agency | UL |
| Current Rating | 20 A |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 1.248 in |
| Voltage Rating - DC | 32 V |
