2002-1321/1000-413
ActiveWAGO Corporation

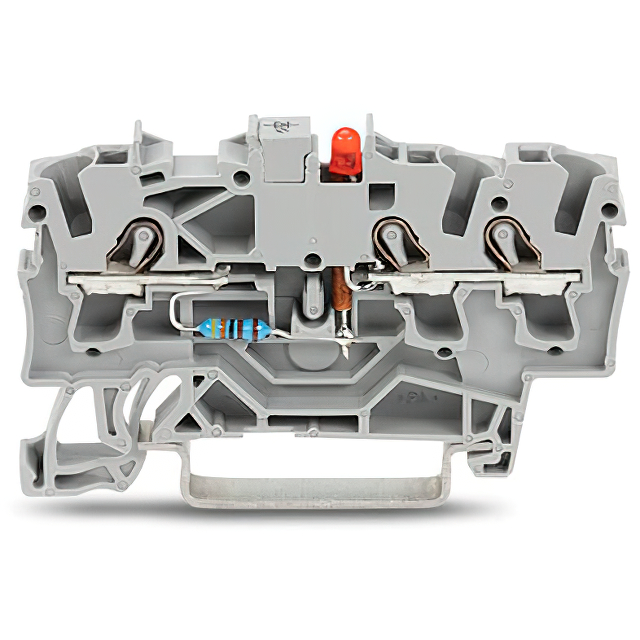

COMPONENT TERMINAL BLOCK; 3-COND
2002-1321/1000-413
ActiveWAGO Corporation
COMPONENT TERMINAL BLOCK; 3-COND
Description
General part information
2002-1321/1000-413
Terminal Block Connector 3 Position Feed Through Gray 12-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2002-1321/1000-413 |
|---|---|
| Color | Gray |
| Current - IEC | 25 mA |
| Features | LED, Resistor |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length (Max) | 12 mm |
| Stripping Length (Min) | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.25 mm² |
