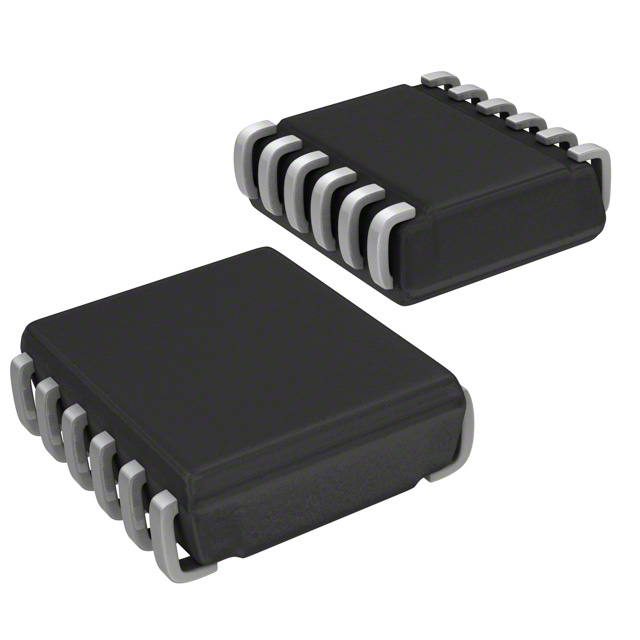

AAT4674ITP-1-T1

Obsolete

Skyworks Solutions Inc.

IC PWR SWTCH P-CHAN 2:1 12TSOPJW

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC PWR SWTCH P-CHAN 2:1 12TSOPJW

Technical Specifications

Parameters and characteristics for this part

Specification	AAT4674ITP-1-T1

Current - Output (Max) [Max]	3 A
Fault Protection	Current Limiting (Adjustable), UVLO
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel
Package / Case [custom]	12-TFSOJ
Package / Case [x]	0.094 in
Package / Case [x]	2.4 mm
Ratio - Input:Output	2:1
Supplier Device Package	12-TSOPJW
Switch Type	General Purpose
Voltage - Load [Max]	6 V
Voltage - Load [Min]	2.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Mounting Type	Switch Type	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Output (Max) [Max]	Package / Case [x]	Package / Case [x]	Package / Case [custom]	Number of Outputs	Ratio - Input:Output	Fault Protection	Interface	Output Type	Voltage - Supply (Vcc/Vdd)	Output Configuration
Skyworks Solutions Inc. AAT4674ITP-1-T1	Surface Mount	General Purpose	6 V	2.5 V	85 °C	-40 °C	12-TSOPJW	3 A	0.094 in	2.4 mm	12-TFSOJ	1	2:1	Current Limiting (Adjustable) UVLO	On/Off	P-Channel		High Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 2:1 P-Channel 3A 12-TSOPJW
