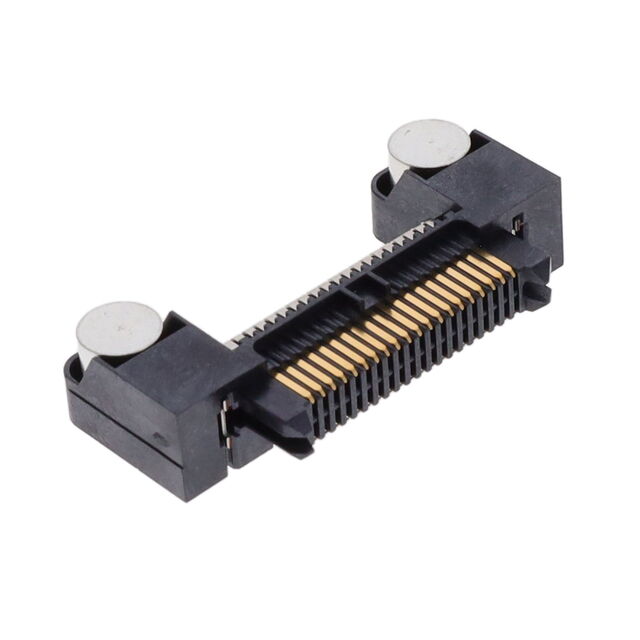

ERM8-020-01-S-D-RA-K-TR
ActiveSamtec Inc.
CONN HDR 40POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ERM8-020-01-S-D-RA-K-TR
ActiveSamtec Inc.
CONN HDR 40POS R/A SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM8-020-01-S-D-RA-K-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Mounting Flange, Pick and Place, Board Guide |
| Height Above Board | 6.25 mm |
| Height Above Board | 0.246 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.71 | |
| 10 | $ 7.87 | |||
| 25 | $ 7.44 | |||
| 50 | $ 7.21 | |||
| 100 | $ 6.33 | |||
| Digi-Reel® | 1 | $ 11.59 | ||
| 10 | $ 10.43 | |||
| 25 | $ 9.83 | |||
| 50 | $ 9.58 | |||
| 100 | $ 9.32 | |||
| Tape & Reel (TR) | 200 | $ 6.33 | ||
| 600 | $ 6.24 | |||
Description
General part information
ERM8-020 Series
40 Position Connector Header, Center Strip Contacts Surface Mount, Right Angle Gold
