Description
General part information
0734066412

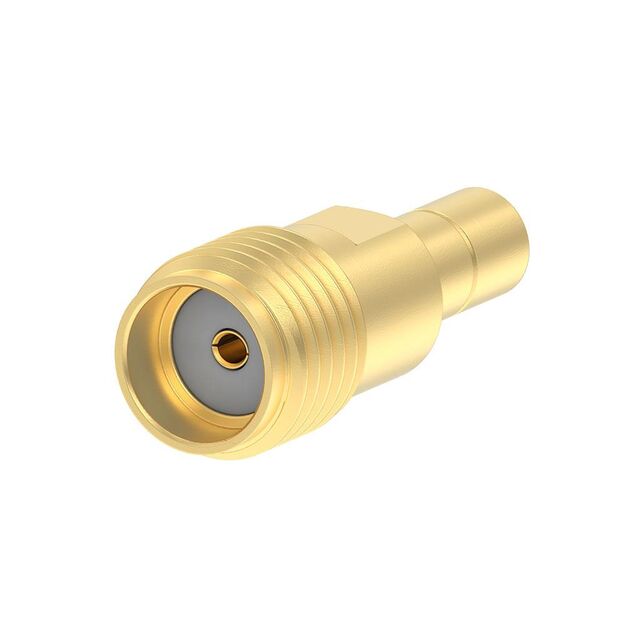

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 0734066412 |
|---|---|
| Adapter Series | SMP to SMP |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMP Jack |
| Convert To (Adapter End) | SMP Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
