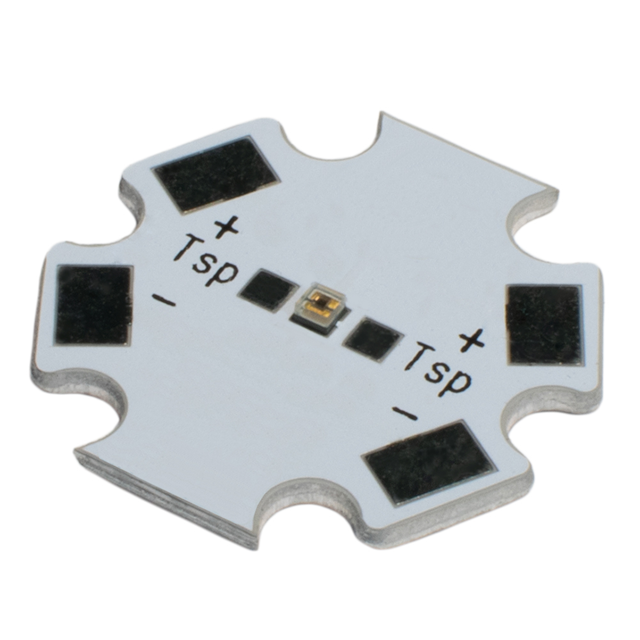

LST1-01G06-UV01-01

Obsolete

New Energy

LED MOD ULTRAVIOLET STARBOARD

Search across all available documentation for this part.

Obsolete

New Energy

LED MOD ULTRAVIOLET STARBOARD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - UltraViolet Starboard

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LST1-01G06-UV01-01	LST1-01 Series

CCT (K)	-	2700 - 6500 K
Color	UltraViolet	UltraViolet, Cool, White, Warm, Far Red, Violet, Green, Neutral, Lime, Amber, Red, Blue
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	-	65 - 95
Current - Max [Max]	40 mA	1 - 800 mA
Current - Test	20 mA	1 - 500 mA
Height [z]	2.59 mm	1.7 - 4.24 mm
Lens Type	Flat	Flat, Domed
Lumens/Watt @ Current - Test	-	31 - 150 lm/W
Luminous Flux @ Current/Temperature	2.6 mW	2 - 1340 mW
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	-	85 °C
Type	LED Module	LED Module, Chip On Board (COB)
Viewing Angle	150 °	60 - 170 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	5.2 V	1.4 - 11.9 V
Wavelength	283 nm	281 - 940 nm
Wavelength [Max]	286 nm	275 - 286 nm
Wavelength [Min]	280 nm	270 - 280 nm

LED MOD ULTRAVIOLET STARBOARD

Part	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Type	Size / Dimension [diameter]	Current - Test	Current - Max [Max]	Lens Type	Wavelength	Wavelength [Max]	Wavelength [Min]	Viewing Angle	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	CCT (K)	Temperature - Test
New Energy LST1-01G06-UV01-01	2.59 mm	Starboard	5.2 V	2.6 mW	LED Module	19.89 mm	20 mA	40 mA	Flat	283 nm	286 nm	280 nm	150 °	UltraViolet
New Energy LST1-01G03-5770-01	1.7 mm	Starboard	3.3 V	302 lm	LED Module	19.89 mm		3 A	Domed					Cool, White	70	144 lm/W	5700 K
New Energy LST1-01H07-3080-01	3.05 mm	Starboard	2.75 V		LED Module	19.89 mm	350 mA	1.23 A	Domed				120 °	Warm, White		95 lm/W		85 °C
New Energy LST1-01G03-2795-01	1.7 mm	Starboard	3.1 V	167 lm	LED Module	19.89 mm		3 A	Domed					Warm, White	95	87 lm/W	2700 K
New Energy LST1-01F06-FRD1-00		Starboard	1.85 V	282 mW	Chip On Board (COB)		350 mA			735 nm			120 °	Far Red
New Energy LST1-01G01-UV01-00		Starboard	3.6 V	875 mW	Chip On Board (COB)		500 mA			365 nm			130 °	Violet
New Energy LST1-01C48-5070-01		Starboard	11.9 V	590 lm	LED Module	19.89 mm	350 mA	1.05 A	Domed					Cool, White	70	142 lm/W	5000 K
New Energy LST1-01G03-3595-01	1.7 mm	Starboard	3.1 V	193 lm	LED Module	19.89 mm		3 A	Domed					Warm, White	95	101 lm/W	3500 K
New Energy LST1-01H07-GRN1-01	3.05 mm	Starboard	3.05 V		LED Module	19.89 mm	350 mA	1.05 A	Domed				120 °	Green		117 lm/W		85 °C
New Energy LST1-01G01-IR01-00		Starboard	1.5 V	280 mW	LED Module		350 mA	1.5 A	Domed	850 nm			130 °
